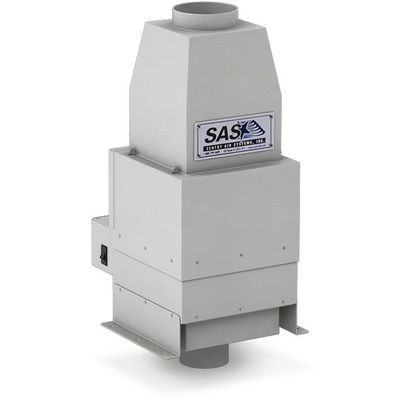

Sentry Air Systems - Model SS-200-MSP/SS-225-MSP -Mounted Sentry Fume Extractor w/ Plenum
The Model 200/225 Mounted Sentry with Outlet Plenum most commonly exhausts filtered air to a remote location or to create a positive pressure environment. The 4” diameter exhaust collar allows air to exhaust outside or into your central exhaust system or ducting. When combined with HEPA filtration, this unique system can also create positive pressure providing clean air to enclosures or compact clean rooms. This unit can remain ductless to recirculate filtered air back into the immediate area.
Most popular related searches
cleanroom
air filtration
solder fume
pressure cleaning
exhaust filter
clean air
acid gas
HEPA filtration
exhauster system
fume extractor
- Laser marking
- Printing fumes
- Soldering fumes
- Fume/vapor source capture
- Positive pressure clean room
- Chemical fume exhaust
- Enclosed machinery mounting
- Many other applications that produce particulate, smoke, dust, and fumes.
- Includes: mounting brackets
- Optional: variable speed controller and hour counter
- Quiet, reliable, low-maintenance operation
- Sturdy construction
- Low power consumption
- Simple, quick “no tool” filter change
- Long filter life
- Base Unit Dimensions
- Length: 10.5” (includes control box)
- Width: 10” (includes mounting brackets)
- Height: 22” (includes plenums)
- Exhaust Config.: 4” diameter
- Cabinet Material: 16 ga. carbon steel
- Weight: Approx. 20 lbs
- Air Volume (approximately)
- 95% ASHRAE:
- 200: up to 100 CFM
- 225: up to 130 CFM
- Pre-Filter + HEPA:
- 200: up to 80 CFM
- 225: up to 91 CFM
- 95% ASHRAE:
- Electrical
- 200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
- 225: 115/1/60, 0.46 amps
- 8’ grounded power cord with NEMA 5-15P plug
- Sound Level (High at 3’ from inlet)
- 200: Approx. 56 dba
- 225: Approx. 64 dba
- Patent #: 5,843,197
- HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
- ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
- Activated Carbon
- Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
