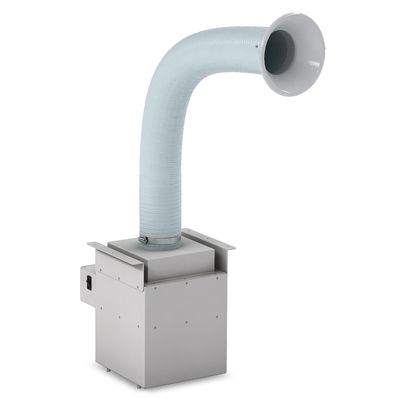

Sentry Air Systems - Model SS-200-MSS/SS-225-MSS -Mounted Single Fume Extractor

FromSentry Air Systems, Inc.

SHARE

The Mounted Sentry Single fume extractor provides an excellent fume extraction choice for small or limited workspace environments. The unit features a self-supportive flex arm that provides source capture of airborne contaminants, while mounting options can free up much-needed workspace. Mounting configurations include bench-mounting, under-the-table mounting, and shelf or wall mounting.

Most popular related searches

mounted fume extractor

airborne contamination

air contaminant

fume extraction

Soldering
Chemical fumes
Solvent and epoxy fumes
Laser fumes
Light grinding
Many other procedures that involve the emission of particulate and fumes

Included: self-supportive 28” L flex arm and mounting brackets
Optional: variable speed controller (115V only) and hour counter
Reliable, low-maintenance operation
Quiet operation
Simple, quick “no tool” filter change
Long filter life
Small footprint

Base Unit Dimensions
- Length: 10.5” (includes control box)
- Width: 10” (includes mounting brackets)
- Height: 10.5”
Arm Dimensions: 3” or 4” diameter, 28” long; 5” or 6.5” capture hood
Cabinet Material: 16 ga. carbon steel
Weight: Approx. 12 lbs
Air Volume (approximately)
- Pre-Filter + HEPA:
  - 200: up to 80 CFM
  - 225: up to 91 CFM
Electrical
- 200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
- 225: 115/1/60, 0.46 amps
- 8’ grounded power cord with NEMA 5-15P plug
Sound Level (High at 3’ from inlet)
- 200: Approx. 56 dba
- 225: Approx. 64 dba
US Patent #: 5,843,19

HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
Activated Carbon
Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
