Movelaser - Model Molas NL -Profibus DP Wind Lidar System 300W Lidar Wind Speed Measurement

SHARE
The Profibus DP Wind Lidar System from Movelaser offers advanced wind speed measurement capabilities using a 300W Lidar system. Designed for a variety of wind measurement applications, including offshore and nacelle-mounted options, this system excels in providing accurate wind speed and direction data. The unit is capable of measuring distances from 50 to 200 meters with a sampling frequency of 4Hz. It offers a wind speed measurement range of -50 to 50 meters per second and a wind direction range of -180 to 180 degrees. The system boasts high accuracy, with wind speed precision at 0.1 meters per second and wind direction accuracy within ±0.5 degrees. Communication is facilitated through multiple protocols including Profibus DP, Modbus TCP, Modbus RTU, and CANopen. The system operates on a power supply of 100 to 240 VAC with a power consumption of ≤300W. It is designed to function in harsh environments, tolerating temperatures from -40°C to 60°C and has an IP66 rating for components outside the engine room.
Most popular related searches
wind speed monitoring
LiDAR system
wind monitoring
LiDAR
LiDAR monitoring
wind monitoring system
LiDAR data
radiation protection
interface monitoring
protective equipment

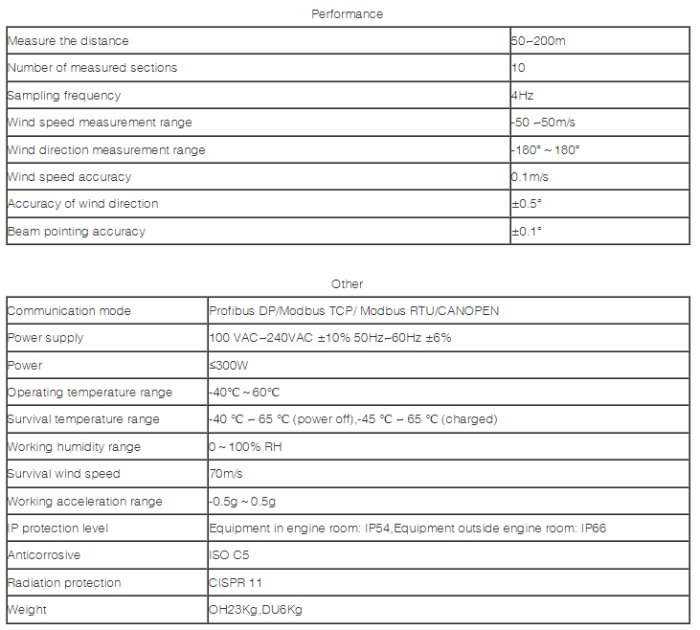

Measure The Distance: 50~200m

Sampling Frequency: 4Hz

Wind Speed Measurement Range: -50 ~50m/s

Wind Speed Accuracy: 0.1m/s

Accuracy Of Wind Direction: ±0.5°

Communication Mode: Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Power Supply: 100 VAC~240VAC ±10% 50Hz~60Hz ±6%

Operating Temperature Range: -40℃～60℃

Survival Temperature Range: -40 ℃ ~ 65 ℃ (power Off),-45 ℃ ~ 65 ℃ (charged)

Survival Wind Speed: 70m/s

IP Protection Level: Equipment In Engine Room: IP54,Equipment Outside Engine Room: IP66

Anticorrosive: ISO C5

Radiation Protection: CISPR 11

Weight: OHabout23Kg,DUabout6Kg

High Light: Profibus DP Wind Lidar System, 300W Lidar Wind Speed Measurement, Wind Lidar System 300W

At this point, the client starts to receive lidar data, the lidar connection status is “normal”, and the current wind speed line graph is displayed on the main interface.
