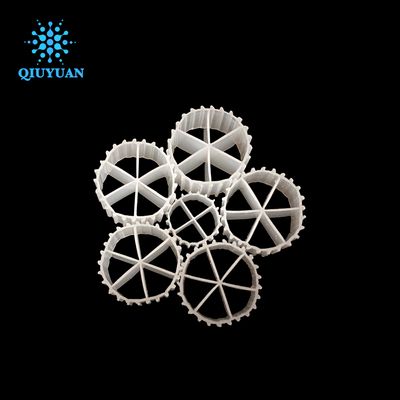

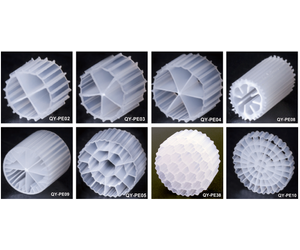

Bioetp - Model MBBR Media -Moving Bed Biofilm Reactor
Moving Bed Biofilm Reactor (MBBR Media) processes improve reliability, simplify operation, and require less space than traditional wastewater treatment systems.Most popular related searches
moving bed biofilm reactor
moving bed biofilm reactor media
biofilm reactor
MBBR biofilm
MBBR media
biofilm reactor carrier media
biofilm
wastewater treatment system
wastewater treatment
MBBR system
processes improve reliability, simplify operation, and require less space than traditional wastewater treatment systems.This technology provides cost-effective treatment with minimal maintenance since mbbr processes self-maintain an optimum level of productive biofilm. Additionally, the biofilm attached to the mobile bio-carriers within the system automatically responds to load fluctuations.
- More COD load: Up to 6~10kg/m3.d, about 2-4 times comparing with active sludge process.
- More NH3 load: Up to 1kg NH3-N/m3.d(35℃).
- Traditional active sludge process can only handle 0.1-0.3kg NH3-N/m3.d.
- Special material to strength bio-film adhesiveness;
- Large specific surface area, high porousness to ensure more biomass to grow;
- Unique structure and shape design according to hydromechanics to strength three-dimensional flow dynamics of carrier in water;
- Adding hydrophilic material and other trace elements to shorten the biofilm formation time, from 3 to15 days;
- Excellent impact strength and strong gas shear capacity;
- Easy to install, easy to cure, less space required.
In SBR process, mbbr media can do
- Increase processing capacity
- Combine nitrification and de-nitrification in one process
- Increase dissolved air efficiency
In AAO press, mbbr media can do
- Reduce hydraulic retention time
- Increase effluent water quality
- Increase tolerance to load fluctuations
- Improve performance in low temperature
