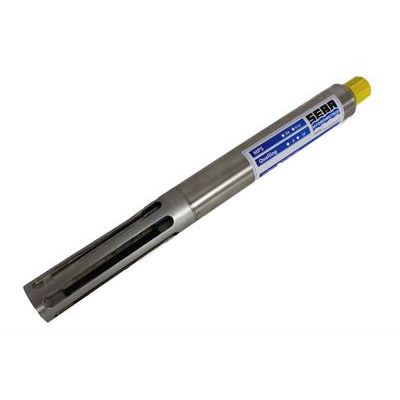

Mulit-parameter probe - MPS-D8/Qualilog8
Robust, pluggable multi-parameter sensor from 1.4439 stainless steel to accommodate up to eight sensors (water level, temperature, conductivity, pH, redox potential, oxygen, turbidity, etc.) // Additional electric contact gauge function combined with KLL-Q-2 mobile field laboratory // Slim design (Ø 48mm, 493 mm length), can be used with 2" and larger pipe diameters // Output: RS485 (SHWP), Option: MODBUS, SDI-12, 0/4-20 mA // Optional: Integrated, powerful SEBA data logger Qualilog8 for stationary useIndividually configurable:
Depending on the measuring task at hand, the MPS-D8 can be individually equipped with a maximum of eight water quality sensors and can detect up to 13 parameters.
Simple handling:
Special bayonet locks grant the users a simple and quick replacement of worn sensors. The calibration and configuration of the MPS-D8 is carried out using a special USB-RS485 interface cable together with ConfigPC operating software (Windows). This will automatically detect if a probe is spent and must be replaced.
Robust:
The housing of the MPS-D8 is made of high-quality 1.4439 stainless steel. The probe can thus be used even under adverse ambient conditions (e.g. landfill or other contaminated sites).
Variable:
The proven and robust SEBA plug system of the MPS-D8 allows both the connection to mobile handsets (SEBA KLL-Q-2 Type electric water level gauge (KLL), Checker-2) and stationary data collectors with data transmission (UniLogCom, LogCom) or without data transmission (Qualilog8).
Application:
- Water quality monitoring
- In surface waters: rivers, canals, springs, lakes
- Groundwater: extraction wells, field measurement sites, landfill and construction sites
- Other applications: discharge monitoring
