SEBA Hydrometrie GmbH & Co. KG

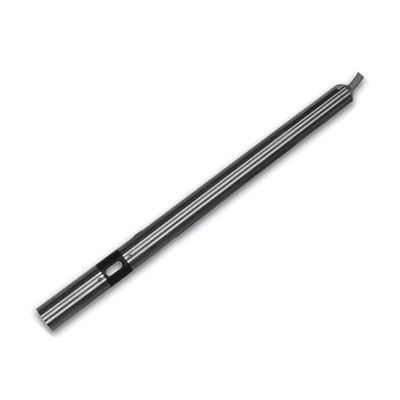

Multi-parameter probe - MPS-PTEC
Multi-parameter sensor for detecting pressure, temperature and conductivity // High-quality 4-electrode conductivity measuring cell // Ceramic-capacitive pressure sensor with high measuring accuracy (0.05% FS) and long-term stability (0.1%/year) // Robust, sleek Ø 22 mm grade 1.4539 stainless-steel housing for extreme conditions // Output: RS485, Option: MOD-BUS, SDI-12, 4-20 mA // Optional with integrated data logger: variant "Dipper-PTEC"Most popular related searches
water level and temperature
conductivity monitoring cell
multiparameter sensor
process control system
data logger
conductivity monitoring
pressure monitoring
TDS value
field monitoring
surface water
Wide measurement range, high resolution:
The MPS-PTEC comes equipped with anautomatic meaasuring range switch (0-0.2 mS/cm; 0.2-2 mS/cm; 2-20 mS/cm; 20-200 mS/cm) which ensures that the best resolution is always available even with significant measuring range fluctuations.
Plug-and-play:
Convenient connection with a SEBA data logger via RS485 or process control systems (MODBUS, 0/4-20 mA), easy configuration and calibration via RS232-USB interface cable using operating software ConfigPC (Windows).
Last but not least:
In addition to conductivity measurement; salinity, TDS values and water density can also be calculated and displayed.
Application:
- Monitoring of conductivity, water level and water temperature in surface water: rivers, canals, springs, lakes
- Groundwater: extraction wells, field measurement sites, landfill and construction sites
- Other applications include: discharge monitoring, swelling pressure measurement
