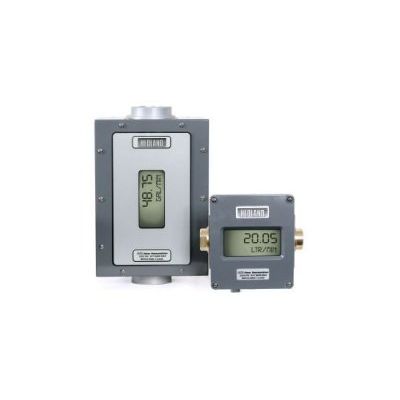

Hedland - MR Flow Transmitter
MR Flow Transmitter; Operate as part of a totally integrated electronic process control/data acquisition system. Digital flow rate and total flow indication. Proportional analog outputs for electronic integration. Non-contact sensor electronics. In-field compensation for specific gravity. Flow ranges: 0.1 - 1.0 GPM (0.5 - 3.75 LPM)up to 10 - 150 GPM (50 - 560 LPM). Construction: Aluminum, brass and T303 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 6,000 psi (414 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale.Repeatability ±1%.
Most popular related searches
flow transmitter
shock and vibration
data acquisition system
flow meter
flow rate totalizer
flow indicator
epoxy coating
process data acquisition
process control system
flow rate indicator
- Standard calibration: 1.0 specific gravity.
- Install in any position.
- No flow straighteners or special piping required.
- Insensitive to shock and vibration.
- Good viscosity stability.
- Housing: Anodized and epoxy-coated aluminum with polycarbonate lens.
- Rating: NEMA 12 and 13 (IP 52/54).
- Connection: 4-pin.
- Electrical: 10-30 Vdc power supply or loop-powered on 4–20 mA current.
- Output: Factory calibrated, field selectable 4–20 mA, 0–5 Vdc and 0–10 Vdc.
- CE compliant — exceeds US and meets European standards for EMI/EMC.
- US Patent 7,130,750.
- Includes: Basic flow meter with flow transmitter output.
