MTH Pumps - Model T31 Series -Close-Coupled Regenerative Turbine Pumps
- 1 - 9 GPM up to 230 Feet of Head
- Close Coupled or Flexible Coupled Pumps
- All Bronze or Cast 316 Stainless Steel Construction Available
- Product Details & Specifications
- Capacities to 9 GPM
- Heads to 300 Feet
- Temperatures to 230°F
Water Passage Design
MTH masters one of the most critical design considerations of regenerative turbine pumps - the shaping of water passageways to achieve maximum capacity and pressure while minimizing horsepower requirements. By optimizing water passageway cross-sectional profiles for each impeller, MTH improves both efficiency and pressure over the standards realized by other techniques.
Impeller Profile
One of the most notable improvements in regenerative turbine pump technology, incorporated in T31 Series pumps, involves the ability to determine the optimum impeller width and blade length. These factors have a significant effect on the required horsepower versus pressure curve for regenerative turbine pumps. By optimizing these parameters for each pump, peak efficiency is improved and “off peak” horsepower requirements are reduced as well.

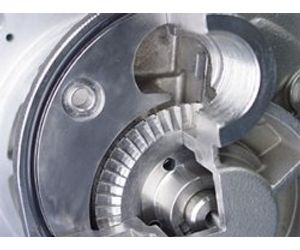

Impeller Blades
After the most favorable impeller profile has been determined for a particular water passageway cross-section, MTH calculates the number of blades needed to maximize the performance of that pump. Current blade design in the T31 Series increases both efficiency and design pressure without the manufacturing difficulties associated with producing contoured blade impellers. State-of-the-art computer controlled machines simplify manufacturing of the various MTH impellers utilized in the T31 Series. The result is a high performance pump providing efficiency characteristics exceeding those of much more expensive units.
NPSH Requirements
T31 Series regenerative turbine pumps meet low net positive suction head (NPSH) requirements without efficiency loss. This is achieved by keeping the inlet fluid velocity low and then gently accelerating to passageway velocities. Special ramps are responsible for this gentle fluid entry into the impeller blades and account for the high inlet efficiency of the T31 Series pumps.
Steep Head/Capacity Curve
Pumping capacity varies only slightly as pressure changes. Steep pressure characteristic overcomes temporary line resistances.
Self Adjusting Impeller
T31 impellers utilize balancing holes to promote hydraulic self-centering and to eliminate the need for external adjustment. The impeller exerts no thrust load on the bearings, thereby extending service life. Self-centering is equally effective whether mounted in the horizontal or vertical position.
Extended Reliability Motors
Custom manufactured D3 motors feature a 304 stainless steel shaft and heavy duty ball bearing for extended life. Single phase ODP and 3 phase TEFC enclosures are standard, as well as a two-pole, 50Hz/60Hz ratings, and UL and CE Marks.
Mechanical Seals
All bronze pumps have Buna elastomers, high temperature carbon seals and ceramic seats, while Stainless Steel pumps feature Viton elastomers, carbon seals, and ceramic seats. Optional seats and materials are available.
300 PSI Case Working Pressure
Rigid structure is designed for maximum casing strength.
Water Flinger
A water flinger provides added protection to ball bearings in the event of seal leakage.
End Suction/Top Discharge
T31 Series pumps are compact to allow installation in small areas. The discharge can be rotated to 90°, 180°, 270° positions to facilitate the most convenient installation.
Simple Construction
T31 Series pumps contain only three major components, allowing for easy service.
Best Efficiency
New pump designs optimize efficiency for each size.
Non-Cavitating
T31 Series pumps may be operated under adverse inlet conditions without audible or measurable cavitation.
Low NPSH
Special inlet design provides superior fluid handling ability with low head inlet conditions.
100% Tested
Every pump is fully tested to verify performance prior to shipment.
Volatile Fluid Handling
The turbine impeller handles vapors in excess of 20% by volume, minimizing the possibility of vapor lock.
“O”Ring Gaskets
“O”ring gaskets are used throughout the T31 Series pumps to assure positive sealing.
Extended Reliability Motors
T31 Series pumps utilize our custom manufactured D3 motors that incorporate a 304 stainless steel shaft and an upgraded heavy-duty bearing. All D3 motors are 2-pole, 50/60Hz rated and feature UL and CE marks for Worldwide use. Single phase units are available from 1/2 to 2HP in an ODP enclosure, while three-phase units are available up to 3HP, and come in an upgraded TEFC enclosure.
Construction Materials
T31 Series pumps are available in all bronze and 316 stainless steel. Consult the factory for other materials.
Bearing Pedestals
All models can be pedestal mounted with flexible-coupled drive.
Sealless Canned Version
For critical and difficult to seal applications, see the ST31 Series.
Variable Frequency Drive
VFD and pressure transducer provides closed-loop pressure control and extended service range.
Inlet Strainer
A 90° suction strainer with a replaceable stainless steel screen is available for installation in the suction line to aid in preventing foreign material from entering the pump. A cap at the bottom of the strainer can be easily and quickly removed for screen cleaning or replacement.
