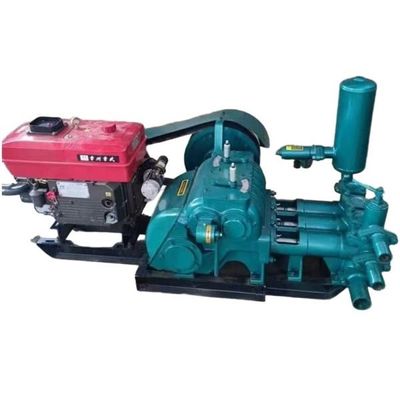

Sunmoy - Model BW250 -Mud Pump
The BW250 mud pump is a high-efficiency, robust, and durable double-acting pump widely used in drilling, mining, and civil engineering. Its main features include: Power System: Diesel engine driven, providing powerful performance suitable for continuous operation. Flow Rate and Pressure: Flexible adjustment of flow rate and pressure to meet diverse operating conditions. Materials and Design: Utilizes high-strength, wear-resistant materials to ensure stable operation even in harsh environments. Maintenance: Designed for ease of maintenance, reducing upkeep time and costs. Ease of Operation: Equipped with an intuitive control system for easy operation and improved work efficiency.
Most popular related searches
mud pump
wear resistance
drilling tool
drain pipe
piston pump
single piston pump
triplex piston pump
triplex plunger pump
drilling mud pump
mining drill
BW250 Technical Parameter
- Pump type: horizontal triplex single-acting piston pump
- Number of cylinders: 3
- Cylinder diameter: 80mm
- Stroke: 100mm
- Displacement: 250/145/90/52L/min
- Working pressure: 2.5/4.5/6.0/6.0Mpa
- Transmission shaft speed: 500r/min
- Diameter of V-belt pulley: 410mm
- V-belt type and number of slots: B type * 5 slots
- Transmissionpower: 15KW
- Suction pipe diameter: 76mm
- Drain pipe diameter: 51mm
- Dimensions (L*W*H): 1100*995*650mm
- Weight (including power): 500kg
