AREACH - Model 60*60 Cells -Mullite Blocks
Ceramic honeycomb blocks / re-circulation heat exchangers are widely used in the heaters and furnaces of many kinds ,widely used in petrochemical ,pharmaceutical, chemical, electric manufacturing, automobile and machinery manufacturing, metallurgical, paint, printing, paper, wood processing and others who needs to dispose exhaust gas. Extraordinary ability to withstand extreme thermal shock without breaking. Ceramic honeycombs have proven their value as the most efficient heat storage media for regenerative use. Besides,the block’s design allows straight-through, laminar gas flow with a low pressure drop that greatly reduces operating costs and the potential for plugging and maintenance problems. it theoretically provides a straight, aerodynamic channel for the air stream. Ceramics receives the heat coming from the treated emissions, is followed by the heating process.Most popular related searches
ceramic honeycomb block
honeycomb block
RTO ceramic
wood processing
honeycomb ceramics
chemical manufacturing
heating circulator
air receiver
printing system
furnace
- High working temperature;
- Low heat expansion;
- High specific heat capacity;
- High specific surface area;
- Low pressure drop;
- Low thermal resistance;
- Low operating and maintenance costs;
- High heat storage;
- Good thermal conductivity;

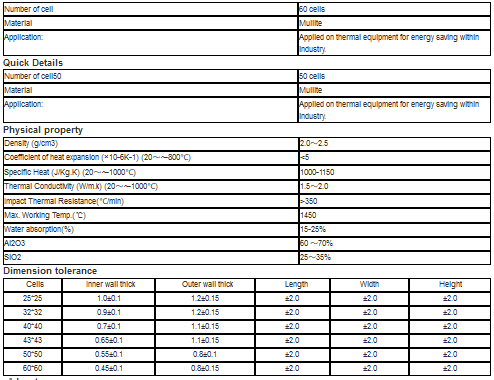

Mullite Block Physical Property
Density ：2.0-2.5G/CM3
water Absorption：15-25%
Coefficient of thermal expansion（20-800℃)≤5x10-6k -1
Specific Heat (20-1000℃)：1000-1150J/Kg.K
Thermal Conductivity (20-1000℃)：1.5-2.0W/m.k
impact thermal resistance≥350℃/Min
Strength （ A axis）≥28MPA
compressive（ B axis）≥8
Material Chemical Composition
AL2O3/ Alumina Oxide：60-70%
SiO2 /Silicon Oxide ：25-35%
MgO：0-1
Fe2O3+TiO2：1-3
Others<5
