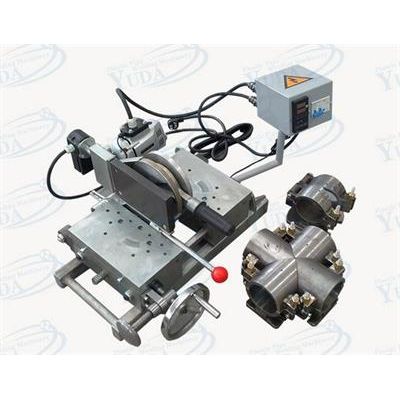

Yuda - Model RGH90/20 -Multi-Angle Fitting Welding Machine
Suitable for fabricating elbow, tee, cross and Y shape (45° and 60°) fittings of PE. PP. PVDF in workshop. Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings. Removable PTFE coated heating plate. Milling plate movement adopts safety switch control to avoid unexpected start. Reliable performance ,easy control.
Most popular related searches
- Ranges of Elbow:20mm —90mm (20mm.25mm,32mm. 40mm,5Qmm,63mm,7 5mm,90mm.)
- Ranges of Tee: 20mm — 90mm (20mm.25mm,32mm. 40mm,50mm,63mm]75mm,90mm..)
- Ranges of Cross: 20mm — 90mm (20mm.25mm!32mm. 40mm,50mm,63mm,75mm,90mm.)
- Ranges of application: PE, PPandPVDF
- Working voltage:—220V ±10%, 50Hz/60Hz
- Total power: 1.8 kW, including: planing tool motor : 0.8 kW. heating plate : lkW
- PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature <t5°
- Environment temperature: —10° "-45°
- Whole machine consists of five parts: basic frame (including: heating plate and planing tool), elbow clamps, tee clamps, cross clamps and electrical box
