Based in Newport, Isle of Wight, Ceramic Substrates and Components Ltd provides industrial ceramic components, technical ceramics, precision ceramics, bespoke ceramics and other advanced ceramic materials to clients across the world.

Formed in 1968 the company has many years of experience in the manufacturing and industrial sector. Helping clients with the highest level of service, the company provides businesses with a professional and international renowned level of support and advice when needed.

As manufacturers of technical ceramics, we have a selection of machinable materials such as: MACOR machinable glass ceramic, SHAPAL Hi-M SOFT, BORON NITRIDE, DURATEC and PYROPHYLLITE (Aluminium Silicate for high temperature or higher wear applications). These materials are available in the following services.

Components finished to your specifications.
Supply material only in block, bar or plate form.
A rapid prototype service in any of our machinable materials.
Research and Development assistance for your special projects.

In addition to machinables, we offer a complete ‘in house’ tooling service for full production runs in a range of materials including different types of refractories, Steatites, various grades and types of Alumina.

With state-of-the-art facilities and expert staff, the service and products are intended to be of the highest standard possible at all times and still be competitive within a global market. With a team of hard working engineers, Ceramic Substrates and Components Ltd has a professional team, of qualified engineers, toolmakers and CNC specialists.

What are Ceramics?

Ceramics encompass such a vast array of materials that a concise definition is almost impossible. However, one workable definition of ceramics is a refractory, inorganic, and nonmetallic material. Ceramics can be divided into two classes: traditional ceramics and advanced ceramics.

Traditional ceramics include clay products, silicate glass and cement
Advanced ceramics consist of carbides (SiC), pure oxides (Al2O3), nitrides (Si3N4), non-silicate glasses and many others.

In general, advanced ceramics have the following inherent properties:

Hard (wear resistant)
Resistant to plastic deformation
Resistant to high temperatures
Good corrosion resistance
Low thermal conductivity
Low electrical conductivity

However, some ceramics exhibit high thermal conductivity and/or high electrical conductivity.

The combination of these properties means that ceramics can provide:

High wear resistance with low density
Wear resistance in corrosive environments
Corrosion resistance at high temperatures

Ceramics offer many advantages compared to other materials. They are harder and stiffer than steel; more heat and corrosion resistant than metals or polymers; less dense than most metals and their alloys; and their raw materials are both plentiful and inexpensive. Ceramic materials display a wide range of properties which facilitate their use in many different product areas.

Aerospace: space shuttle tiles, thermal barriers, high temperature glass windows, fuel cells
Consumer Uses: glassware, windows, pottery, Corning¨ ware, magnets, dinnerware, ceramic tiles, lenses, home electronics, microwave transducers
Automotive: catalytic converters, ceramic filters, airbag sensors, ceramic rotors, valves, spark plugs, pressure sensors, thermistors, vibration sensors, oxygen sensors, safety glass windshields, piston rings
Medical (Bioceramics): orthopedic joint replacement, prosthesis, dental restoration, bone implants
Military: structural components for ground, air and naval vehicles, missiles, sensors
Computers: insulators, resistors, superconductors, capacitors, ferroelectric components, microelectronic packaging
Other Industries: bricks, cement, membranes and filters, lab equipment
Communications: fiber optic/laser communications, TV and radio components, microphones

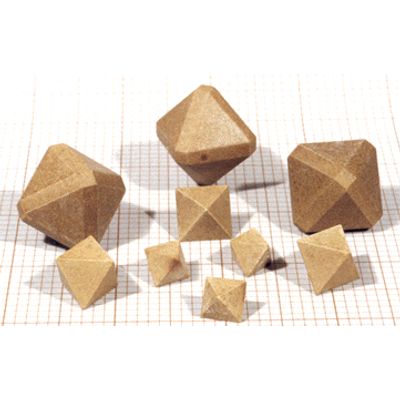

CSC - Multi-Anvil Octahedra
