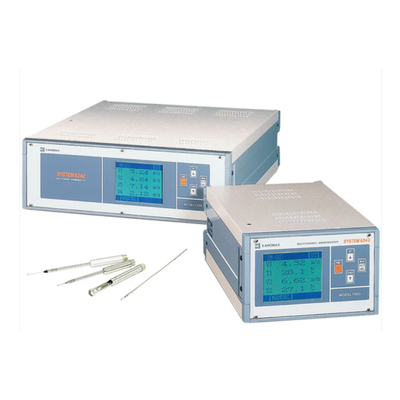

Applied Physics - Model 1550/1560 Series -Multi-Channel Anemometer

• 1550/1560 Anemometer is a research-grade instrument designed for high performance precise measurements
• When coupled with our highly accurate probes this multi-channel anemometer deliver a scalable system
• The Kanomax 1550 & 1560 house modules bays for the connection of up to 24 channels (model 1560) or 64 channels (model 1550) of simultaneous air velocity measurements
• Each bay accepts one of five unique modules allowing for a wide variety of custom configurations for air velocity, temperature, and humidity measurement

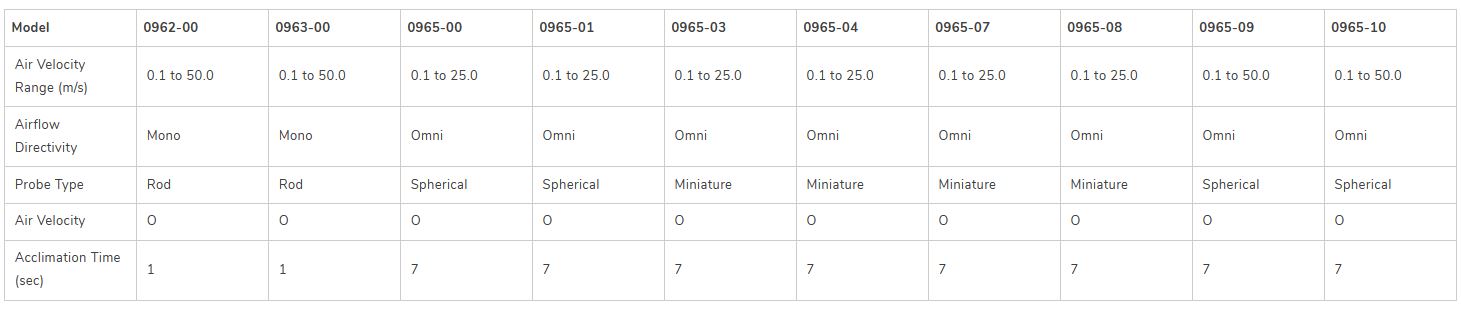

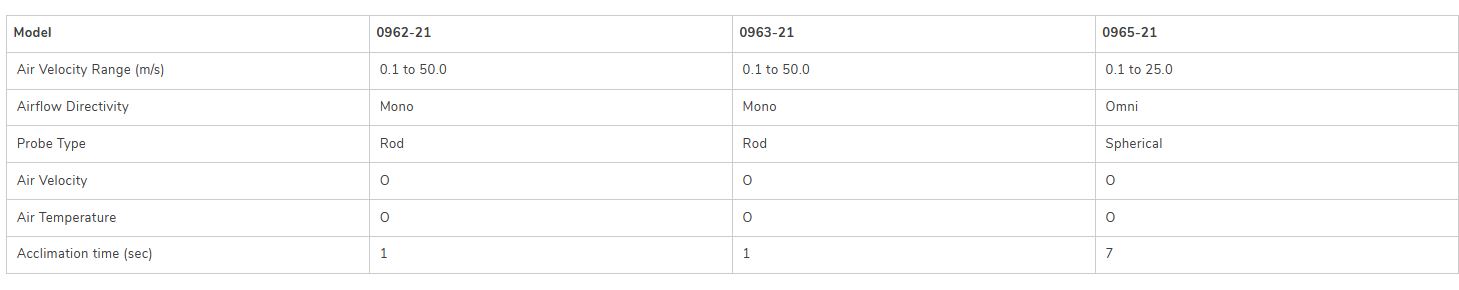

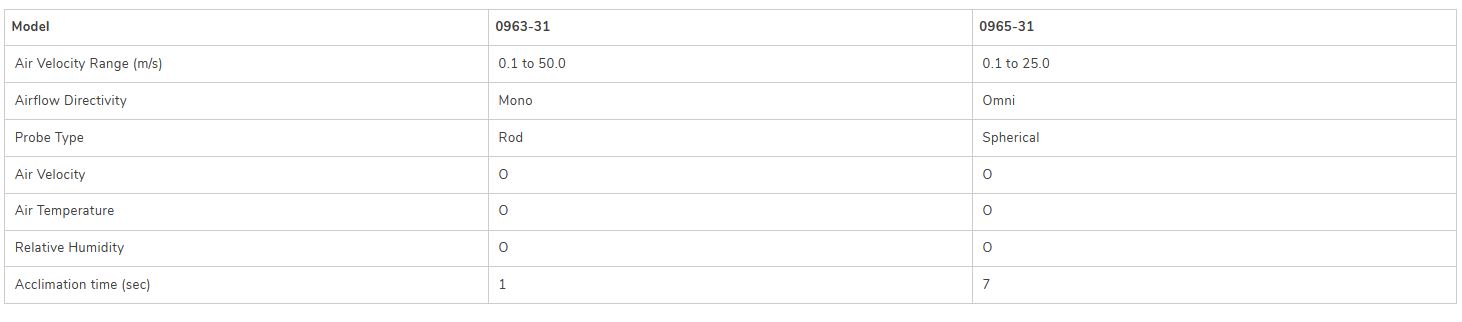

• Multiple probes (Air Velocity, Temperature & Humidity) are available
• For a larger system, you can connect up to 5 units in a cascade for up to 320 air velocity channels and transfer the data to your company computer
• Both units feature a bright LCD display that reveals the data from each channel
• Burst mode allows you to output the data of all channels at high speed and and decide which probe to query and send data from

• Ventilation monitoring for energy efficient building
• Evaluate cooling efficiency in the electronic device
• Aerodynamics Research
• Production Control
• Product Development

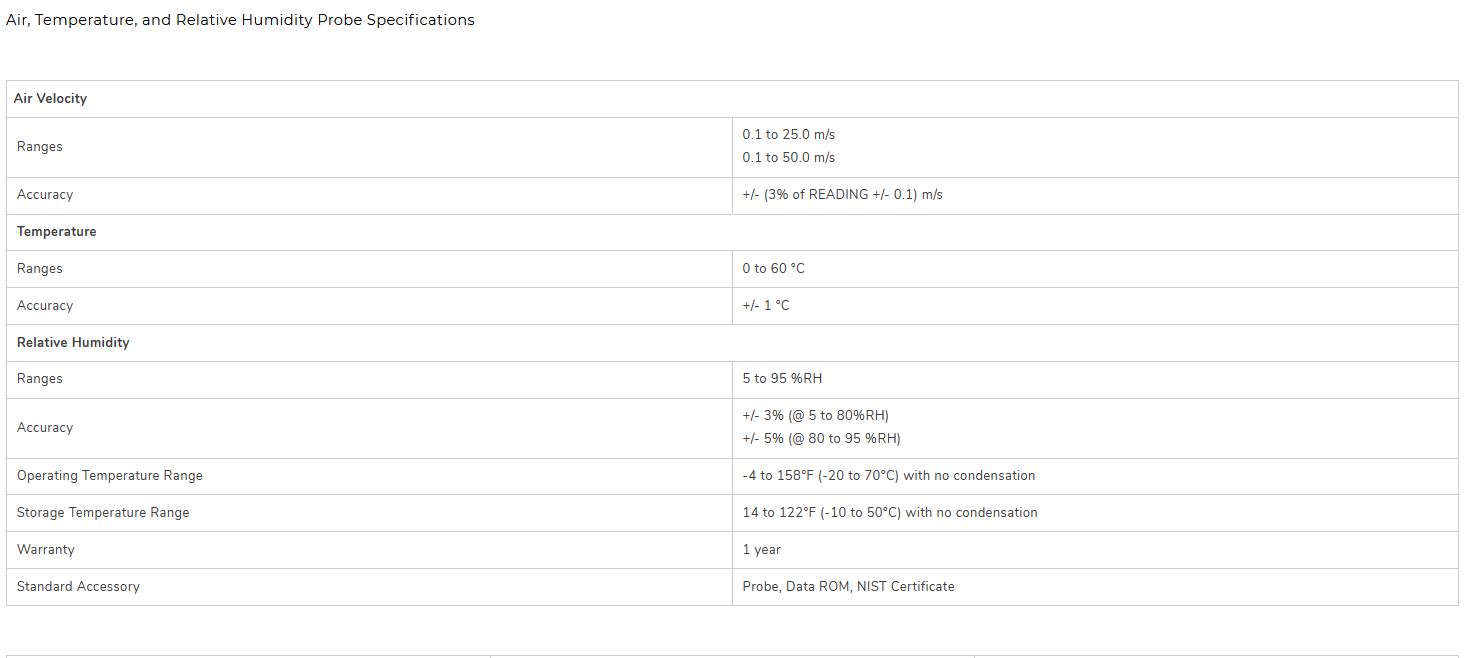

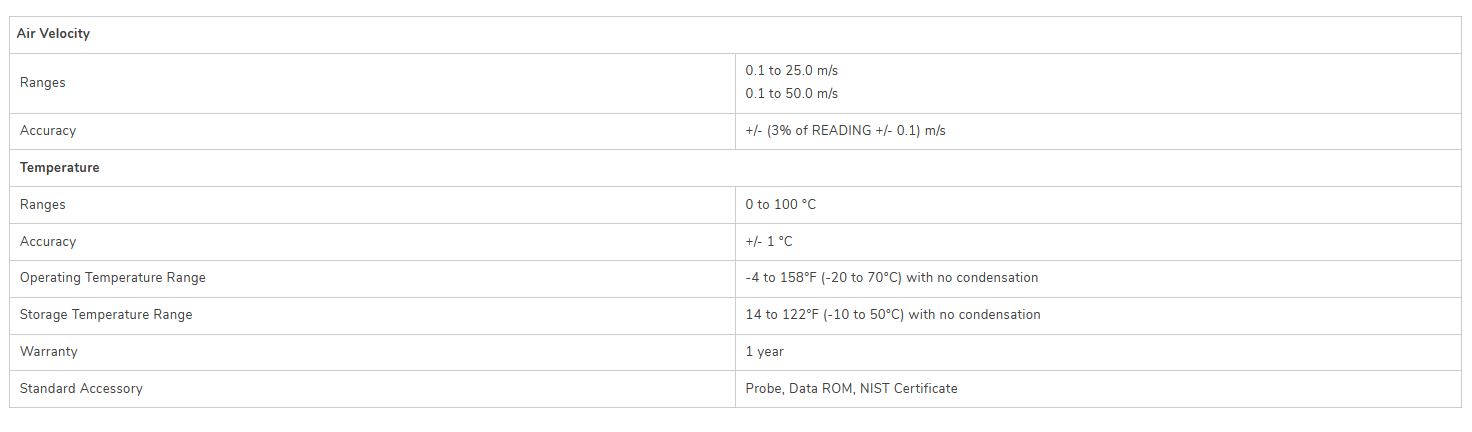

Air Velocity

• Ranges: 0.1 to 25.0 m/s, 0.1 to 50.0 m/s
• Accuracy: +/- (3% of READING +/- 0.1) m/s
• Operating Temperature Range: -4 to 158°F (-20 to 70°C) with no condensation
• Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation
• Warranty: 1 year
• Standard Accessory: Probe, Data ROM, NIST Certificate
