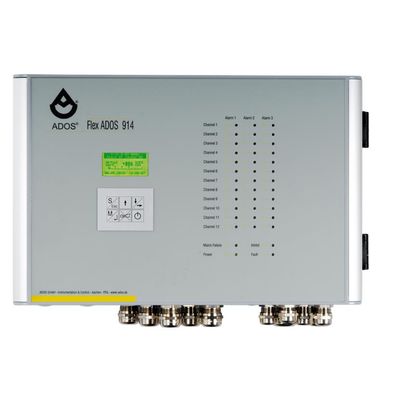

Ados - Model FlexADOS 914 MED -Multi-Channel Gas Sensor System
The multi-channel gas detector system FlexADOS914 MED continuously monitors the ambient air and provides an early warning of harmful, explosive and non-flammable gases and vapours. The evaluation unit has been equipped with a robust cabinet to resist increased mechanical strains as they may occur in the maritime sector. Moreover, the evaluation unit disposes of the class certificate DNV-GL and fulfills the requirements of the Marine Equipment Directive 2014/90/EU (marking: MED wheel mark). Together with the GTR 210 gas transmitter family, FlexADOS 914 MED achieves safety integrity level SIL1 and can be used for primary explosion protection.
- Explosion protection on ships with LNG drives, LPG drives and LFL drives
- Explosion protection and interting on LNG, CNG, oil and chemical tankers,
- Explosion protection in LNG terminals
- Liquid gas storage facilities
- Leakage monitoring of refrigerating units
- Laboratories
- Refineries
- Detection of oxygen deficiency and excess oxygen
- Gas powered boiler systems
- Wastewater treatment plants
- Inertisation.
- and much more
- Up to 12 analogue 4...20mA sensors are evaluated (GTR 210 MED)
- Graphic LCD display to show content values, mean values and faults in plain text
- Indicator for operation, malfunction, maintenance, power failure
- Simple menu-guided setting of the device parameters using 6-part keyboard
- Three alarm thresholds per sensor, independently adjustable from 10 to 90% of the measuring range
- Averaging from 1 to 60 minutes possible
- Maximum of 14 potential-free changeover contacts to control further warning and control facilities
- Potential-free changeover contact for malfunction,maintenance and power failure
-
Optional: Connection to building management systems for transmission of measured values and status
- Aluminium wall housing (IP 54)
- High operating reliability
- Low power consumption
- Simple assembly
- Uninterrupted electricity supply possible
Horn, warning light, blinker lamp, recorder, emergency power unit UPS 2000-24V, gas cooler, gas inlet, and much more. Additional accessories are offered on request depending on the measuring task.
