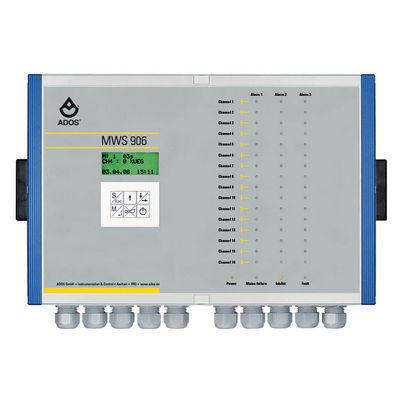

Ados - Model MWS 906 -Multi Channel Gas Warning System
FromADOS GmbH
The multi-channel gas warning unit MWS 906 continuously monitors the ambient air and issues an early warning of gases and vapours that are dangerous to health, or when there is a danger of explosion, for non-combustible gases and vapours.
Most popular related searches
gas warning system
multi-gas warning system
gas warning
multi-gas warning
multi-gas
ambient air
plastic processing
laboratory storage
multi-gas system
liquid storage
- Heating systems
- Garages and tunnels
- Liquid gas storage plants
- Laboratories
- Cold-storage depots
- Plastic processing workshops
- Chemical industries
- Paint varnish manufacturers
- Concentration measurement of O2
- and many more
- 6-section keyboard and backlit 4-line LC-display for displaying actual values, half-hourly average values and fault messages in cleartext
- Ready for operation, fault and gas warning indicators
- Menu-assisted adjustment of equipment parameters via 6-section keyboard
- Three alarm thresholds for each sensor, indepen-
- dently adjustable from 5-100% of the measurement range, also possible to from half-hourly average values
- A maximum of 48 floating outputs for driving additional warning and control devices
- Floating change-over contact for faults, sirens and warning banners
- Serial output RS 232, for connecting a printer or PC
- 4-20 mA current interface as output signal
- Plastic, wall-mounting housing (IP 54)
- High degree of service reliability
- Low power consumption
- Easy installation
- Un-interruptible power supply (UPS) can be used
