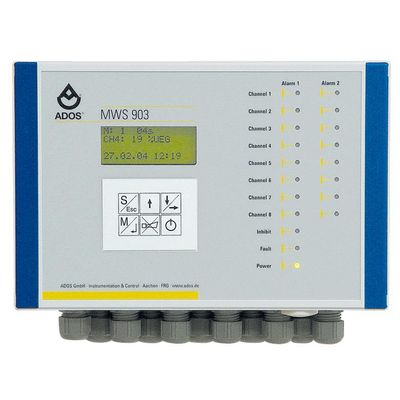

Ados - Model MWS 903 -Multi Channel Gas Warning System

Monitoring of:

• Heating systems
• Garages and tunnels
• Liquid gas storage rooms
• Laboratories
• Cold-storage houses
• Plastic processing plants
• Chemical industries
• Paint manufacturing plants
• Concentration measurement of O2
• and many more

• 6-section keybord and illuminated 4-line LC-Display for indicating actual values, half-hourly average values and fault messages, all clear text encoded
• Ready, fault and gas warning display
• Menu-assisted settings for the equipment parameters, via 6-section keyboard
• Two alarm thresholds for each sensor, independently adjustable from 5 % to 100 % of the measurement range; facility for forming half-hourly average value
• A maximum of 12 floating alarm outputs for controlling extra warning and control devices
• Floating change-over contacts for fault, siren and warning banners
• Serial interface output, RS 232 for connecting a printer or PC
• Plastic, wall-mounted housing (IP 54)
• 4–20 mA interface
• Plastic, wall-mounted housing
• High operational reliability
• Low current consumption
• Easy installation
• USP unit available

Signal horn (siren), Warning light, Warning banner, Test meters, Plotter, Stand-by power supply UPS 2000 24 V. Additional accessories will be offered, according to the system required. An early warning of dangerous, explosive and non-combustible gases and vapours.
