Multi Channel Syringe Pump

Multi Channel Syringe Pump

FromNanjing Runze Fluid Control Equipment Co., LTD

Multi-Channel Syringe Pump is a precision syringe pump specially designed for high precision liquid handling with a small footprint applied in limited spaces. The fluid path borosilicate glass, PCTFE, sapphire is workable for strong corrosive chemicals in a wide application range. It is available to select from a variety of syringe volumes and valve configurations.

Most popular related searches

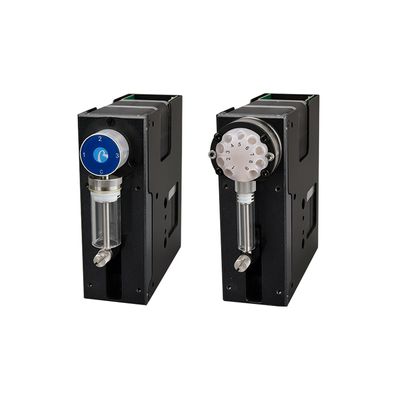

Smart SY-01B syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users` requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01B syringe pump provides a guarantee on the R & D and application for users. efficiency maintenance-free stepper motor drive system. Address up to 24 pumps individually via RS485 or CAN Communication.

Accuracy: ≤1%@100% stroke

Precision (Repeatability): 0.3%~0.5%@100% stroke

Rated stroke (control steps): 30mm(12000 steps standard mode; 96000 steps micro-step mode)

Maximum speed: 450rpm

Linear speed: 0.0067mm/s ~ 15mm/s(media: water ; 1 rated stroke=one time)

Running time (per rated stroke): 2s-4500s(media: water ; 1 rated stroke=one time)

Resolution: 0.0025mm (per step)

ILS Syringe: 25μl, 50μl, 125μl, 250μl. 500μl, 1.25ml, 2.5ml, 5ml

Valve Model(available): M01?M02?M03?M04?M05?M06?M10?M12

Wetted material: Borosilicate glass, PTFE, Sapphire, PCTFE

Max. Pressure Rating: 0.7Mpa

Actuator: Trapezoidal screw (Lead 1mm/2mm)

Connection: 1/4-28UNF

Baud rate: RS232/RS485: 9600bps, 38400bps

Communication addres: Up to 15 individual addresses can be provided

Firmware: Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory

Power supply: DC24V/3A

Operating temperature: 5?~55?

Operating humidity: <80% relative humidity, non-condensing

Dimension (L*W*H): 45*143.3*127mm

Max Power : 25W

Net weight: 1.5kg

Multi Channel Syringe Pump

Model Numbers of Multi Channel Syringe Pump

Specification of Multi Channel Syringe Pump

Valve Options of Multi Channel Syringe Pump
