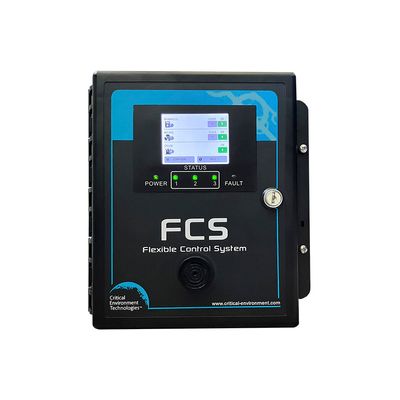

CETCI - Model FCS -Multi Channel System Controllers
The FCS Flexible Control System is a sophisticated, high performance controller that offers multi-channel configurations for monitoring toxic, combustible and refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications. The FCS is designed to accept inputs from digital and/or analog transmitters and/or Peripheral Devices (in various combinations), using Modbus® RTU RS-485 or 4-20 mA analog input. The FCS is available in 4 channel, 8 channel, 32 channel and 128 channel models with either Modbus® RTU RS-485 WAN output or with BACnet® MS/TP RS-485 WAN output for communicating with a Building Automation System (BAS).
High performance Controller with logic and priority settings for monitoring toxic, combustible and refrigerant gases with versatile control functionality
Available with Modbus® or BACnet® communication with BAS, supports 4-20 mA and Modbus® driven VFDs
All models include, four configurable SPDT dry contact relays with field configurable time delays and trigger levels, a full colour LCD resistive touch screen with LED panel indicating configurable channel alarm status, relay status and fault conditions, intuitive menu system with password protection, enhanced logic control, priorities/zoning capabilities, a USB port for firmware upgrades, data logging and a door-mounted, audible alarm. The FCS has flexible configuration settings for analog outputs and supports 4-20 mA and Modbus® driven VFDs.
Optional value added features include, analog inputs and/or analog outputs, a top mounted strobe, a locking door, a manual shut off switch and a water tight, door-mounted audible alarm.
The FCS can be connected to the following CET remote devices:
- Remote strobe/horns
- Remote Display Module (CET-RDM)
- Remote Relay Module (RLY-4 and/or RLY-8)
- LNK-AI Analog Input device
- LNK-AO Analog Output device
- LNK-XT Network Extender
- Remote Power Supply (RPS-24VDC)
Features, Options and Remote Devices Guidelines
All models can be configured to comply with California Title-24 Building Energy Efficiency Standards. Specification details need to be given at time of order and additional settings can be implemented in the field as required.
- Available in 4 channels, 8 channels, 32 channels and 128 channels
- FCS-M models offer Modbus® RTU RS-485 digital output signal for LAN and WAN communications
- FCS-B models offer BACnet® MS/TP RS-485 output signal for WAN communications (for communicating with a BAS)
- Graphic, full colour, touchpad LCD screen with LED indicators
- Intuitive menu system with password protection
- Optional internal analog inputs and/or analog outputs with flexible configuration settings
- Enhanced logic control, zoning and priority structure capabilities
- Supports 4-20 mA and Modbus® driven VFDs
- 4 dry contact relays, 5A @ 240V each
- 2 dedicated horn/strobe output drives, 0.5A @ 24VDC max
- Line Voltage (90 - 240 VAC)
- USB port for firmware upgrades and data logging
- Configurable to comply with California Title-24 Energy Efficiency Standards
- Door mounted audible alarm, optional water tight version available
- Standard water / dust tight, corrosion resistant enclosure (drip proof); IP54 rated with water tight, door mounted audible alarm installed
