Real Tech - Model MCA Series -Multi Colour Submersible Probe
Real Tech’s robust Multi-Colour submersible probe provides affordable real-time measurement of multiple colours in water or wastewater in accordance with ISO 7887:2011 Method B. The Multi-Colour probe utilizes patent-pending technology to provide superior measurement performance across multiple wavelengths of light using LEDs. The probes rugged body is built to withstand harsh environments, with titanium or stainless steel options. Designed to meet the needs of many monitoring applications, the MCA series offers multiple path length selections for the desired measurement range.
- Affordable real-time colour monitoring
- Multiple wavelength sensor uses patent-pending technology for superior measurement performance
- Robust submersible probe with titanium or stainless steel housing
- Operator friendly, low maintenance design
- Reagent free optical measurements
- In accordance with ISO 7887:2011 Method B
- Simple to install and operate
Characteristic: Technical Data
- Path Length Options: 1 mm, 2 mm, 4 mm, 10 mm
- Parameters: Colour
- Range: Depends on model selected. Refer to range chart
- Accuracy: ± 0.5% full scale
- Units: 1/m
- Sampling Time: 10 seconds
- Calibration: Factory parameter calibration allows field adjustment as required.
- Cleaning : Automatic compressed air cleaning with optional Probe Clean System
- Self-Diagnostic : Detection and diagnosis of internal system fault
- Alarms: Continuous detection of leaks, lamp output, humidity, temperature and electrical fault
- Humidity Control: Humidity sensor with desiccant pack
- Wavelength: Visible (VIS)
- Light Source: LED
- Electrical/Comm.: From controller
- Storage Temp.: -20 to 60°C (-4 to 140°F)
- Operating Temp. : 0 to 45°C (32 to 113°F)
- Housing Material: Titanium
- Weight : 4.6 lb
- Dimensions: 15" H x 2.0" Diameter
- Warranty: 2-year limited warranty (Extended care packages available)
* Technical Specifications are subject to change without notice.and diagnosis of internal system fault
Ideal for open channel applications, Real Tech’s Colour probe is a submersible instrument installed directly in-situ. The Colour probe must be connected to a Real Tech controller for operation.

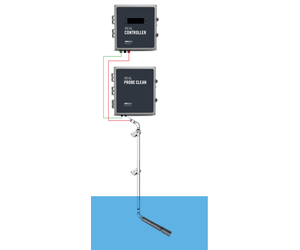

EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - Probe Clean System
For low maintenance automatic cleaning - Mounting Kit
For secure mounting to a tank or open channel wall, or railing - Multi-Colour Probe
For real-time continuous measurement of multiple colours
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for lab results.
