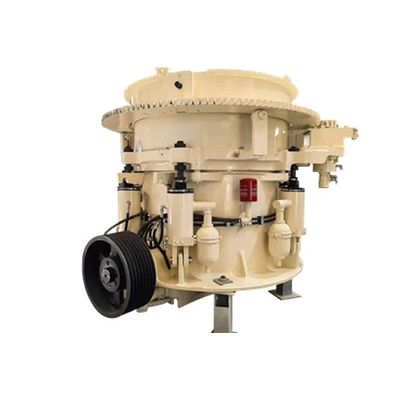

Sunvit - Model HPS100/200/300/400/500 -Multi-Cylinder Hydraulic Cone Crusher
Multi-cylinder hydraulic cone crusher adopts the most advanced foreign R & D technology and produces high-efficiency cone crusher, Such as fixed spindle, The eccentric sleeve is crushed around the spindle and the tablet, The optimized structure greatly improves the crushing performance, At the same time, the hydraulic lubrication system of the multi-cylinder hydraulic crusher ensures the stable operation of the system, And make the system control more intelligent.
When working with a multi-cylinder hydraulic crusher, The motor is driven by a pulley and a V-belt drive device with a drive shaft, The drive shaft drives the eccentric sleeve spindle through large and small bevel gears, The eccentric sleeve drives the cone to do a fixed pendulum movement, Bring the moving cone and the fixed cone closer to the surface, Sometimes away from the rolling mortar wall, The material is crushed between the rolling mortar wall and the crushing wall, The crushed material is discharged from the lower part.
- Strong processing power, high work efficiency, small energy consumption.
- The finished product has a good grain size and a uniform material level.
- The structure is simple, easy to operate, and the discharge mouth is convenient.
- Small size, high efficiency, low noise.
