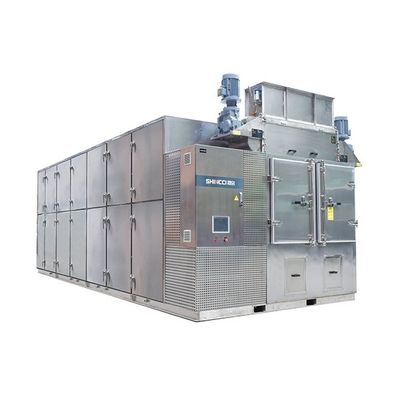

Shincci - Model MHR Series -Multi-Effect Heat-Recovery Belt Sludge Dryer
Facilitated on-site installation and better airtight performance: Heat pump + mesh belt + insulation board in one module. Condenser, evaporator and refrigerant pipelines all are copper, but advanced stainless steel. SUS316L heat pump support, improving product corrosion resistance. Easier cleaning and maintenance: two modules share one blower which is not under the sludge conveying belt. Quick-opening type service access door, and improved with unique airtight structure design. Longer service life: not in contact with circulating dry air, the compressor works in a clean air condition. Electronic expansion valve to increase dehumidification capacity.
MHR INTEGRATE LOW TEMP. MULTI-EFFECT HEAT-RECOVERY SERIES BELT-TYPE SLUDGE DRYER

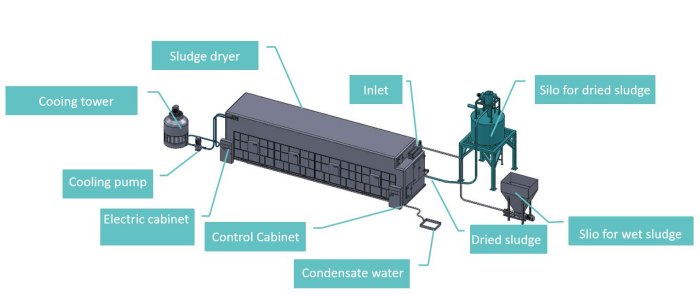

Mechanism Schematic Diagram
MHR Series utilizes recovery of condensation waste heat to heat up material, which can meet the rapid heating and drying requirements for low moisture content materials, such as slime
If you want to know the field application of a certain model, you can copy the product model and search in search bar.
Common Technical Specs
- Structure: Assembled Set
- Cooling Method: Water Cooling SL(Δt=12?)
- Refrigerant: R134a
- Drying Temperature: 48~56?(recycle air)/ 65~80?(supply air)
- Control System: Touch screen + PLC programmable controller
- MHR13500SL
- MHR20000SL
- MHR25000SL
- MHR27000SL
- MHR33700SL
- MHR37500SL
- MHR40500SL
- MHR47000SL
- MHR50000SL
- MHR62500SL
