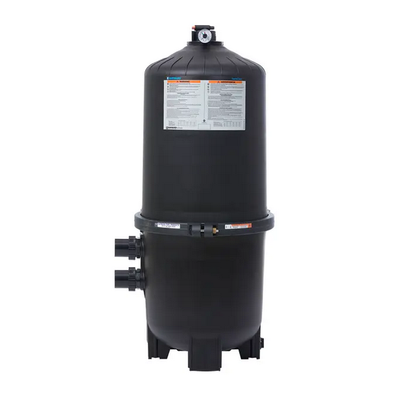

Hayward - Model SwimClear HCF7030C -Multi-Element Cartridge Filter

The Dual-Quad-Cluster commercial HCF7030C cartridge filter system features a massive 700 ft2 of filter area providing heavy-duty, dirt-holding capacity and extra-long filter cycles. The HCF7030C will prove to be a major contributor to any pool or spa operator driving to provide the ultimate in clear, fresh and safe water. It will reduce operation costs and enhance the eco-friendliness of the facility by saving thousands of gallons of carefully balanced, heated pool water per month through the elimination of backwashing. Ideal for new construction or retrofits, the HCF7030C can accommodate commercial flow rates to 150 GPM. The filter exterior is molded from a glass-reinforced co-polymer material capable of meeting the rigorous demands of the commercial environment.

• 700 ft2 of high-performance filter media, effective particulate removal of 10-20 microns vs. 20-40 microns with sand
• Easy access to eight compact cartridges for fast, manageable cleaning
• 2" x 2½" connections with full 2" internal piping
• Capable of handling 150 GPM flow rates
• NSF/ANSI Standard 50 Certified

• Application: New Construction, Renovation, Aftermarket
• Brand: Hayward
• Cartridge: Yes
• Channel: Expert Line
• Design Flow Rate: 150
• Drain Port Size (Inches): 1.5
• Effective Filtration Area: 700 ft.²
• Filter Type: Cartridge
• Footprint: 26 x 26 INCH
• GTIN: 610377142670
• Labor Warranty: 1-year
• Master Carton Qty: 1
• Number of Filter Elements: 8
• Pallet Qty: 8
• Parts Warranty: 3-year
• Pool Type: Commercial
• Pressure Gauge: Yes
• Product Dimensions: 52.5 " x 24 " x 24 "
• Product Height: 52.5 in
• Product Length: 24 in
• Product Weight: 107 lb
• Product Width: 24 in
• Public Design Flow Rate: 150
• Quantity: 1
• Residential Design Flow Rate: 150
• Series Filters: SwimClear Multi Element
• Shipping Dimensions: 53.8 " x 24.6 " x 23.1 "
• Shipping Height: 53.8 in
• Shipping Length: 23.1 in
• Shipping Weight: 107 lb
• Shipping Width: 24.6 in
• Side Clearance - Filters: 18 in
• Tank Type: GFR
• Turnover 10 Hours: 90000 GPM
• Turnover 8 Hours: 72000 GPM
• Valve Included: N/A
