Multi-Functional Extraction Machine
The equipment is suitable for various processes such as atmospheric pressure, micro pressure, water decoction, warm immersion, infiltration, extraction of aromatic oil components and recovery of organic solvents in traditional Chinese medicine, plants, animals, food, beverages and chemical industries. The tank is equipped with CIP cleaning system, which is in line with GMP medical standards. This equipment is mainly suitable for laboratory research and development and small and medium trial production lines of universities, research institutes and enterprises. Another popular essential oil machine is our commercial essential oil distiller.
- Material: 304 stainless steel
- Function: extraction and concentration
- Capacity: 10-200 L
- Feature: CIP cleaning system, long working time
- Application: Chinese medicine extraction, aromatic oil and vegetable essential oil extraction
- This equipment is the latest developed small dynamic extraction tank with high efficiency,saving raw material.
- The working time is 10%~15% higher than the general extraction tank.
- Machine body adopts anti-explosion technology with high stability and reliability.
- It is of high conversion rate because of full release of active components.
- Unique paddle stirring design accelerates the precipitation of effective components in the raw materials.
- Compact structure, less land occupancy. The actual area is only about 2 m2
- Wide application. It can be used for Chinese medicine extraction,aromatic oil and vegetable essential oil extraction at a higher efficiency
Structure of Vacuum Distillation Plant

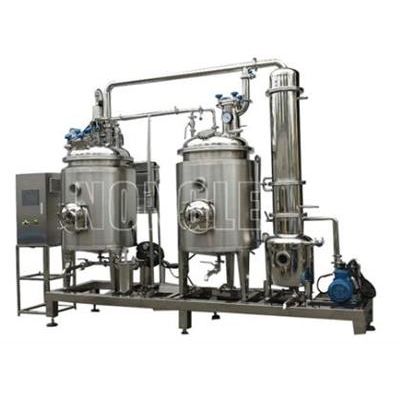

The unit consists of extracting tank, reflux condenser, reflux cooler, volatile aromatic oil collector, filters, tubular heater, evaporator, recovery condenser, recovery cooler, collecting tank, stainless steel rack and connecting pipe valves, and meters, etc.
