ENVEA - Model MIR 9000 CLD -Multi-Gas IR-GFC analyzer
FromENVEA
Standard Reference CLD method for low & ultra low NOx measurement, IR-GFC for CO, CO2, SO2, N2O, Nox, HF, HCl, TOC and O2 in a single analyzer. Fast and simultaneous measurements of up to 10 gases, available in 2 versions: NOx (CLD) and O2 (Paramagnetic) in 19’’ Rack or Tight box for low and ultra-low NOx monitoring. CO, CO2, SO2, HCl, HF, TOC, N2O (IR) + NOx (CLD) + O2 (Paramagnetic) in Tight box.
Most popular related searches
multi-gas IR
multi-gas
multi-gas monitoring system
IR gas analyzer
industrial emissions monitoring
cold sampling system
gas filter correlation
gas monitoring system
multi-gas monitoring
multi-gas analyzer

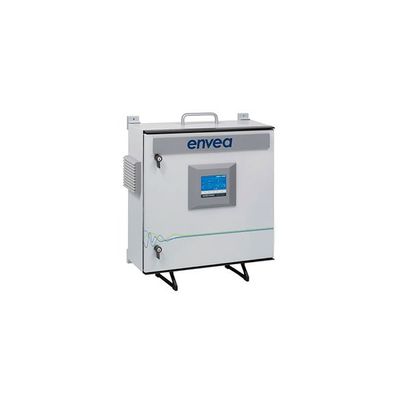

Multi-Gas IR-GFC analyzer (Infrared Gas Filter Correlation) with CLD option (Chemiluminescence Detector) designed to measure dry and corrosive samples
- Over 4000 installations worldwide, covering many applications and industries
- Unheated sample line thanks to the permeation drying technology used
- Intrinsic security with on-board residual H2O measurements
- On-board oxygen measure for environmental reporting
- Interactive menu-driven software with real time graphic display for ease of operation
- Highly accurate, excellent stability with automatic optical stability check
- Automatic CO2 and cross interference correction
- Built-in data logger for 7 additional parameters (flow, pressure, temperature or any other analogue input)
- Compatible with various drying technologies such as a SEC sampling system or a high performance gas cooler
- Cogeneration, Gas Turbines
- Industrial Boilers
- Furnaces
- Power & Combustion

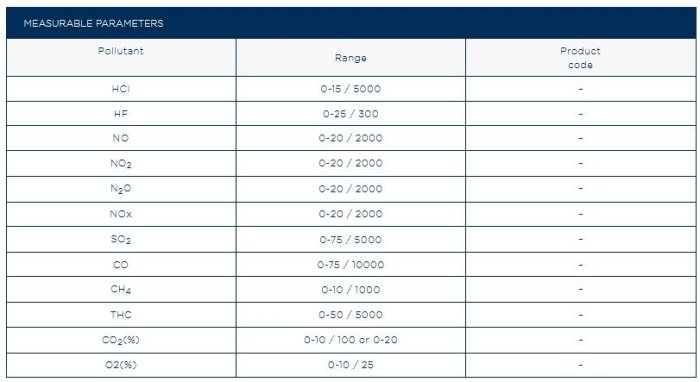

Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
Technical Specifications
- QAL1 to EN 15267-3 certified: YES
- US EPA compliance: YES
- Sampling technology: Cold/Dry Extraction
- Sample transfert: non heated polytube
- back flush function: YES
- span injection: YES on analyser or at sample point
- Built-In O2 option: YES
- Serial link communication: RS232 / RS422
- Other Communication: Ethernet
- Analogue OUTPUTS: Optional
- Analogue INPUTS: YES (x 4)
- Dimensions (mm):
- Tight box: 200 x 600 x 600 (D x W x H)
- 19” rack: 490 x 483 x 177 (D x W x H)
Complete system would normally comprise of:
- Sample extraction and conditioning probe (with integrated temperature, pressure and flow measurement)
- Cold sample lines
- Calibration module
- Instrument air drying module
- Acquisition and data management system (DAHS) may complement the system
Compliance with LCPD and WID Applications
- QAL 1 certified by the MCERTs to EN 15267-3
- QAL3 compliance as defined by EN 14181
- U.S. EPA approved as compliant with 40 CFR 60 ET 75
