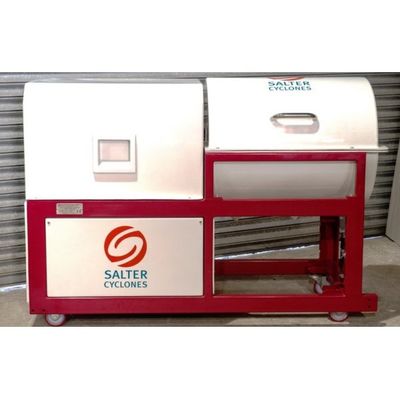

Salter Cyclones - Multi-Gravity Separators

The technology is unique in that it enables recovery and selective concentration of ultra-fine minerals at multiple g-forces, unlike centrifuges, jigs or spirals. Its operating principle can be likened to powerful, compact shaking tables. However, in this instance, the normally horizontal separating surface of a shaking table is wrapped into a conical drum, which when rapidly rotated, develops an enhanced gravitational field which pushes down the lower size limit for economic separations of the finest mineral particles.

Salter Cyclones` Multi-Gravity Separators are available in three sizes:

• SCMG1 - Laboratory/Pilot unit
• SCMG2 - Designed to treat over 3-4 t/hr dependent on feed material
• SCMG3 - Designed to treat a capacity typically 25% higher than the SCMG2

Salter Cyclones offer a full range of spares including those for the Mozley C902 MGS and Mozley C901 MGS (Multi-Gravity Separators).
