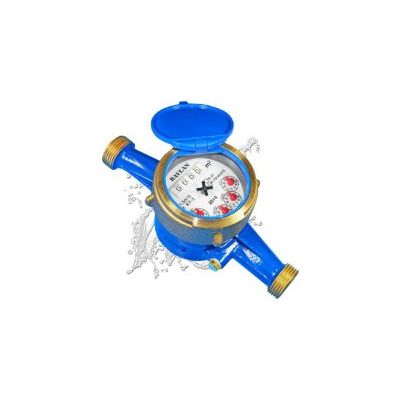

Baylan - Model TY-1 -Multi Jet Wet Type Water Meter
MID Certified. Available for optical reading. Pulse output and AMR reading features are optional. Multi jet working principle assures a long service time. Suitable for potable water.
Most popular related searches
multi-jet wet type water meter
water metering
water meter
wet water meter
non-return valve
mechanical water meter
drinking water
drinking water data
multi-jet water meter
jet water meter
- Low pressure loss, high sensitivity at initial flow
- Special glass with high resistance to pressure and impact
- 360° rotating lid Double filter Non return valve
- Electrostatic painted body made of corrosion resistant brass
- 3 years of warranty Almost no maintenance
- Suitable for cold water up to 50°C
- Service and spare parts available for 10 years
- Environmental Classes Climatic : -10°C/+55°C | Mechanic: M1/O | Elektromagnetic: E2

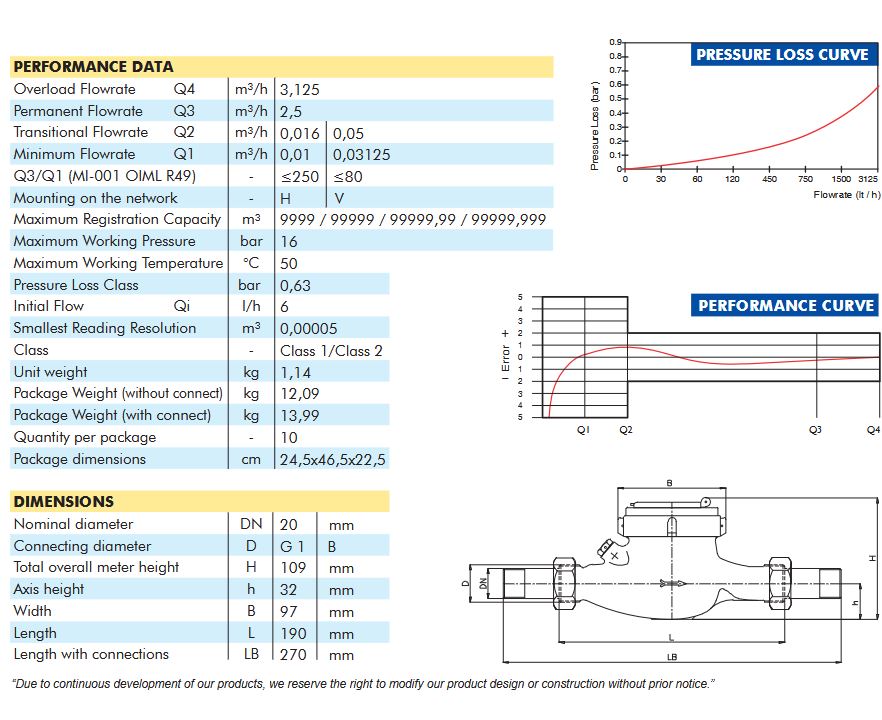

- Q2≤Q≤Q4 Maximum Permissible Error Class 2 Water Meters; %±2 (Water Temp.≤30°C), %±3 (Water Temp.>30°C) Class 1 Water Meters; %±1 (Water Temp.≤30°C), %±2 (Water Temp.>30°C)
- Q1≤ Q
