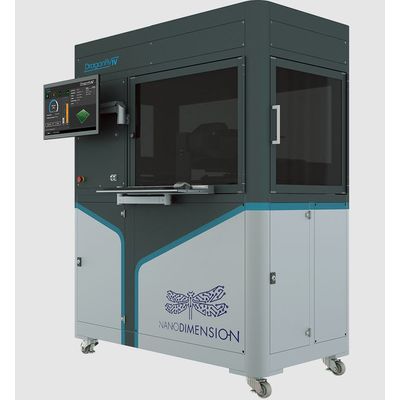

DragonFly - Model IV -Multi-Layer 3D Printer for Circuit Fabrication

Design Flexibility Beyond Traditional Boundaries

A completely new way to build electronics

• Freedom in Three Dimensions

Layouts can now make connections in any 3D direction

• Novel Form Factors

FLIGHT software allows for new shapes in electro-mechanical CAD

Transformational Processes

Highly agile design and production in days, not weeks or months

• Digital End-to-End Execution

Additively Manufactured Electronics (AME) removes human error and lengthy manual operations

• Cleaner Methods

3D printing eliminates toxic chemical waste and dramatically reduces energy consumption

Generate Devices in House

Turn ideas into fully functional circuits within hours

• Protect Your IP

Keep ideas confidential within your organization

• High Performance

Component electrical performance is comparable to traditional devices

Guided by Deep Learning

DeepCube — the first AI devoted to additive manufacturing

• Better Yield

Self-learning artificial intelligence dramatically improves printed output

• Real-Time Correction

DeepCube can detect and correct for small defects during production

• Dimensions1,400mm x 800mm x 1,800mm: Stainless steel
• Weight520kg, (1,150lbs): Stainless steel
• Power Supply*230VAC, 20A, 50–60Hz: CFC Free at very high density I Sp.110mm
• Network ConnectivityEthernet TCP/IP 10/100/1000: Yup
• Operational HumidityAbove 35% non-condensing: Yup
• Operational Temperature18°C (64°F) to 28°C (82°F): Front and rear wheels
• Regulatory ComplianceUL, CE, FCC: 630x440x473
• Deposition TechnologyPiezo drop-on-demand inkjet: 850x735x1057
• Number of Printheads2, one for each ink: conductive and dielectric: 950x835x1207
• SoftwareFLIGHT Software Suite (Design, Verification, Pre-Production): 125/145
