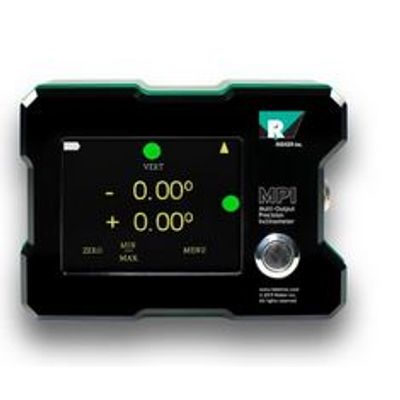

Rieker - Model MPI -Multi-Output Precision Touch Screen Inclinometer

Our MPI unit is a touch screen inclinometer providing a multi-output precision sensing solution. The MPI provides accurate and precise single or dual axis inclination sensing in a rugged machined Aluminum housing – each edge provides a flat reference surface for ease of use. The design of the housing provides for hand-held use; the anodized finish protects the surface from wear. The MPI offers digital, analog, switch and display outputs making the MPI ideal for numerous applications.

The display shows angle in degrees (º), percent grade (%), or inch per foot rise (“) with either 1, 0.1 or 0.01 degree resolution. The display provides graphical axis level indicators in green, yellow, and red, which can be activated to trip at predefined angles within the specified measuring range – providing the operator a bright visual alert of changed condition. These can be coordinated with the built in Relay outputs – each with field adjustable trip angle settings.

The MPI also has a Bulls-Eye Bubble Level mode for precise leveling applications.Powered by a long-lasting rechargeable battery or external 8..30VDC non-regulated input supply the MPI is made for mobile hand-held use, temporary magnetic placement (mounting plates included) or permanent installation.

• Weight 160 oz
• Dimensions 17 × 14 × 5 in
• Accessories Yes
• Application Antenna Positioning, Ball Banking, Motor Grading, Pitch and Roll Monitoring, Platform Leveling, Roll Angle, Roll Over Early Warning, Slope Warning System, Vehicle Tilt Monitoring
• Number of axes  One, Two
• Backlit Yes
• Case Material Machined Aluminum
• Classification Electronic
• Customizable Yes
• Industries Audio, Construction, Defense, Marine, Mining
• Input 3.7V (battery), 8 to 30 VDC
• IP Rating 65
• Measuring Range -10 Degrees to +90 Degrees, ±15 Degrees, ±180 Degrees, ±45% Grade, ±50 degrees, ±6 Degrees, ±60 Degrees, ±70 Degrees, ±75 Degrees, ±80 Degrees, -30 Degrees to +90 Degrees, ±1.5 Inch Per Foot Rise, ±13% Grade, ±5 Degrees, ±10 Degrees, ±20 Degrees, ±26 degrees, ±30 Degrees, ±45 Degrees, ±90 Degrees
• Operating Temperature -10°C to 60°C
• Output Switch: Relay, Analog: Voltage, Digital: LCD Display, Digital: RS232, Digital: RS485
• Refresh Rate 9.6 Hz to 250 Hz
• Resolution 0.01 Degrees, 0.1 Degrees, 1.0 Degrees
• Temperature Compensation Yes
• Units of Measurement Degrees, Inch Per Ft-Rise, Percent Grade
