Delta-T - Model WET150 -Multi-Parameter Soil Sensor
- lower cost research-grade multi-parameter sensor - Measures moisture, temperature and EC - Digital SDI-12 for easy system integration - Rugged and low power - Accurate monitoring of soil conditions - Detachable and extendable cable system - 5 year warranty - The new digital multi-parameter WET150 soil sensor represents the culmination of forty years research and development at Delta-T Devices. Benefiting from a number of important design innovations, the WET150 delivers research-grade accuracy and build quality at a price point not previously thought possible. This means growers can now integrate a true research-grade multi-parameter sensor into their precision irrigation and environmental control systems at lower cost – making those systems even more effective, reliable and affordable. The WET150 is also available in kit form with meter.
When buried in soil or substrate the WET150 Sensor simultaneously measures three crucial variables that influence plant growth: moisture content, temperature, and electrical conductivity (EC) – a strong indicator of the general nutrient level.
An important feature of the WET150 is its ability to reliably calculate pore water conductivity (ECp), which is the ion content of the water available to the plant.
The WET150s patented sensor electronics produce research grade measurement accuracy with exceptional salinity and temperature stability ‐ essential for critical control and irrigation decisions. When the sensor is buried, temperature measurement (essential for compensating the EC measurement – for optimum accuracy) is measured directly in the root zone.

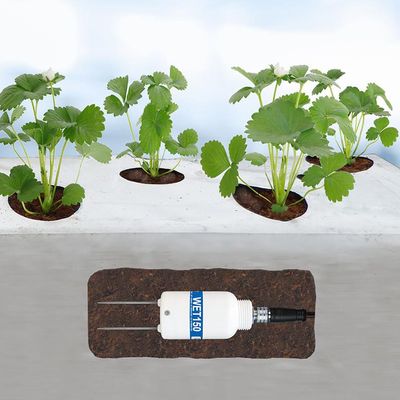

When installed in grow bags, the WET150 can provide the accurate data required to power effective SDI-12 enabled automatic precision irrigation systems – cutting costs and waste whilst boosting produce yields and quality.
The rugged watertight build of the WET150 also makes it ideal for use in outdoor farming and agriculture – sensors can be left buried over very long periods of time without loss of performance. WET150 sensors can also be buried at different depths to enable monitoring of soil moisture, temperature and EC profiles.
The WET150 is a digital SDI-12 sensor (fully compliant with SDI-12 version 1.3 standards). SDI-12 is a standardised interface for connecting digital sensors to a master device – typically an SDI-12 compatible data logger, wireless node, controller, or computer. SDI-12 defines both the digital communications and sensor power standards.
A key strength of SDI-12 is that it supports the connection of multiple networked sensors to a single input on a SDI-12 enabled master device – cutting costs and complexity.
The WET150 (like all SDI-12 Sensors) is low power and features an integrated microprocessor that enables it to perform two way communication with an SDI-12 master device.
The WET150 outputs readings in a standard SDI-12 format which can be sent to, and recognised by, the master device. The inclusion of a microprocessor also gives the WET150 the ability to perform complex internal correction, compensation and averaging algorithms that enhance the quality of the data.
SDI-12 protocol is based on a master-slave configuration. When installed in an SDI-12 network, individually addressed WET150s (slaves) are sent data requests by the master device. These requests briefly wake all WET150s in the network – and result in a measurement and data sending response from the targeted WET150. When not responding to a master request, all WET150s remain in a dormant energy saving state.
The WET150’s sharp and strong pins minimise soil and substrate disturbance, preserving the original structure around the measurement rods, and making the probe easy to insert and install. For burial at depth the cylindrical shape facilitates installation in augured holes. Optional extension tubes assist with placement and removal (50 cm and 100 cm lengths, connectable).
