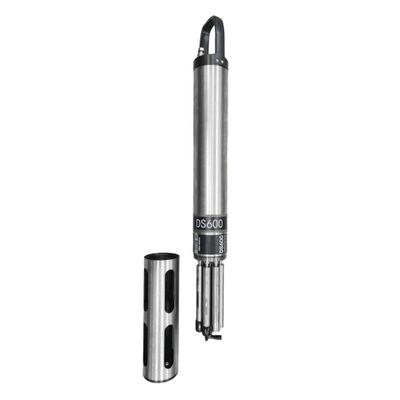

EE-water - Model DS600 -Multi-Parameter Water Quality Sonde for In-situ Monitoring
The DS600 Multi-Parameter Water Quality Sonde is a sophisticated device integrating advanced sensor technology for comprehensive in-situ water quality monitoring. It features six sensors and an electric cleaning brush, allowing it to effectively measure a variety of parameters including temperature, depth, conductivity (comprising specific conductivity, salinity, TDS, resistivity, and density), pH, ORP, dissolved oxygen, turbidity, chlorophyll, blue-green algae, oil in water, and ammonium ions. An external replaceable battery facilitates field operations while its large-capacity memory can store over 5 million entries of measured data. Constructed from titanium alloy, it ensures durability with high resistance to corrosion and mechanical stress. The device supports cable-free operations, wireless communication, and features a RS485 interface with Modbus RTU protocol for seamless data transmission. Its modular design and anti-interference system make it ideal for various applications, including oceanography, aquaculture, and environmental protection.
The DS600 is equipped with six sensors and one electric cleaning brush. It is an in-situ water quality sonde based on advanced sensor technology. It can be used portably in the field or deployed for long-term use to conduct online monitoring of parameters such as temperature, depth, conductivity (specific conductivity, salinity, TDS, resistivity, density), pH, ORP, dissolved oxygen, turbidity, chlorophyll, blue-green algae, oil in water, and ammonium ions. With a wide range of measurable parameters, it can be widely applied to various in-situ water quality testing scenarios in the ocean, surface water/groundwater, aquaculture, environmental protection, water supply and drainage.
- External replaceable battery: The design of the replaceable battery is especially convenient for field operations.
- Large-capacity storage: The host is equipped with a large-capacity storage chip, supporting the storage of over 5 million measurement data entries.
- Titanium alloy material: It has higher hardness, lighter weight, and better corrosion resistance.
- Cable-free operation: It supports wireless communication with various terminals such as mobile phones and computers, enabling real-time data viewing through software.
- Single-cable multi-host cascading: It can measure more water quality parameters or those at different profiles simultaneously.
- One instrument with measurement/storage/calibration modes: The same instrument has measurement, storage, and calibration modes.
- Highly reliable testing and evaluation system: It offers stable measurement and strong anti-interference ability.
- Use of RS485 interface and standard Modbus RTU protocol: It enables real-time data transmission.
- Strong expandability: Each probe can be freely combined, independently replaced, and is plug-and-play. Multiple sensors can be installed simultaneously.
- Electric cleaning brush: It can ensure the cleanliness of the measurement window, prevent microbial growth, and reduce labor costs.
- Wide application scope: It can be used portably in the field or deployed for long-term online monitoring.
