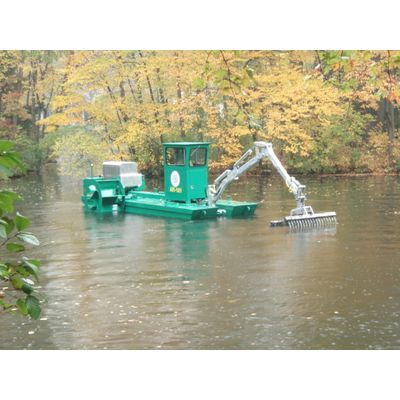

Alpha Boats - Model Aquatic Rake AR-101 -Multi Purpose Hydraulic Boats
Forward mounted hydraulic crane. A complete hydraulic system for all material handling, and propulsion functions, with variable speed control at the operator’s finger tips. Diesel hydraulic power unit, with heavy-duty battery under a lockable fold-up hood. Lockable hydraulic oil and diesel fuel tanks, hydraulic directional valves, and dual filtration.
Most popular related searches
marine coating
water management
pressure gauge
hydraulic boat
stainless steel tube
hydraulic valve
oil skimmer
belt conveyor system
tachometer
floor conveyor
The AR-101 Water Management Boat can come equipped with an array of working tools and attachments such as a clamshell, weed and root rake, double rake grapple, oil skimmer, hydraulic winch, cutter bar, digging bucket, berm chopper. The AR-101 hydraulic crane arm extends these tools into your working environment
- Operator’s cab with seat and console with engine controls and monitoring system including warning lights, tachometer and hour meter, and hydraulic remote controls with pressure gauge.
- “Hydro-dynamically” shaped hulls, including multiple compartments, inner ribbing, tie and lift cleats, vents, anti-skid deck, and bottom skids.
- Two independent, bi-directional, hydraulically driven Paddle Wheels with variable speed controls.
- Bow stabilizers.
- Railings and guards.
- Stainless steel fasteners.
- Marine coating, following sandblast preparation, includes priming and finishing coats.
- Operators Manual, Parts Catalog and One Year Warranty.
- Clam Grapple
- Rotor Clam Shell with Drains
- Single Acting Rake
- Log Grapple
- Recovery Crane with Winch
- Forward mounted hydraulic crane
- A complete hydraulic system for all material handling, and propulsion functions, with variable speed control at the operator`s finger tips
- Diesel hydraulic power unit, with heavy-duty battery under a lockable fold-up hood
- Lockable hydraulic oil and diesel fuel tanks, hydraulic directional valves, and dual filtration
- Independent Twin Propulsion Controls and Gauges
- Hydraulic Steering Helm
- Stainless steel Hydraulic Tubes and Fasteners
- Operator`s platform with a seat and console with engine controls and monitoring system including warning lights, tachometer and hour meter, and hydraulic remote controls with pressure gauge
- Conveyor belt system made of heavy-duty open mesh galvanized steel supported by UHMD plastic tracks and interchangeable floors
- Storage Conveyor with load indexing and height adjustable discharge
- Hydro-dynamically shaped hulls, including multiple compartments, inner ribbing, tie and lift cleats, vents, anti-skid deck, and bottom skids
- Two independent, bi-directional, hydraulically driven Paddle Wheels with variable speed controls
- Bow stabilizers
- Railings and guards
- Stainless steel fasteners
- Marine coating, following sandblast preparation, includes priming and finishing coats
- Operators Manual, Parts Catalog and One Year Warranty
- Clam Grapple c/w Rotor Clam Shell with Drains
- Single Acting Rake
- Log Grapple
- c/w Rotor Hydraulic Recovery Winch
