Hammbreaker GmbH

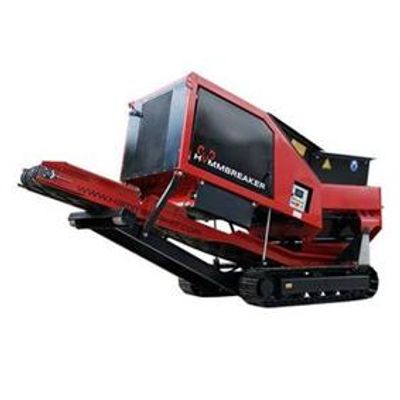

Hammbreaker - Multi-Purpose Industrial Shredder
FromHammbreaker GmbH
The HAMMBREAKER is a multi-purpose industrial shredder, especially designed to meet the recycling demands of emerging and developing markets. Whether you need a shredding machine for scrap metal, car bodies and white goods or a crusher for construction debris, reinforced concrete, tarmac, wood and waste: The HAMMBREAKER offers you technology that excels in durability, stability, easy operation and maintenance.
Most popular related searches
industrial shredders
industrial shredder
permanent overband magnet
hydrostatic drive
magnetic overband
shredding system
scrap metal
permanent magnetic overband separator
shredder
magnetic overband separator
- 220 hp 5 liter Volvo Penta diesel engine
- Tier 3 / Stage IIIA compliance
- hydrostatic drive with power regulated hydraulic motors
- engine speed approx 2200 rpm
- built-in hydraulic oil cooler
- torque 160 000 Nm
- diesel tank capacity 2 x 200 liter
Two Shaft System
- open shredding unit
- double breaking combs (retractable)
- automatic reverse to prevent damage
- different shredding programs (sync/async)
- time-induced automatic RPM shaft adjustment
Quick Change System
- reduces downtime
- easy and fast maintenance access
- complete procedure takes less than 1 hour
- high quality chevron belt
- foldable (for transport)
- belt width 800 mm
- discharge height 2500 mm
Permanent Overbelt Magnet
- effective Fe separation
- laterally fitted over discharge belt
- approx. weight: 1t
Additional Set – Shafts
- prevent downtime during shaft maintenance (refurbishment)
- compatible with quick change system
Additional Set – Quick Change System
- can be pre-fitted over additional shaft set
- reduces number of maintenance steps
