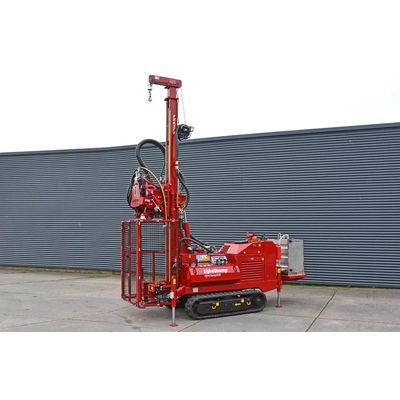

SmallRotoSonic -Â Model SRS-PL -Multi-Purpose Sonic Crawler Drilling Rig
The SmallRotoSonic PL (SRS-PL) excels trough capturing the powerful sonic force in an extraordinary small and manoeuvrable package. Despite its size, this sonic drilling rig is perfect for various applications. We use direct push when 150Hz SmallRotoSonic delivers faster and better results and provides undisturbed samples. Despite the size of this machine, it still delivers an extremely powerful True 150 Hz frequency.
The machine may be small in size, but big on performance. Because the drilling rig is so compact, it is easy to drill in places where space is limited. The powerful drilling rig is suitable for Mineral sampling, Environmental exploration, Geo-technical sampling and testing, Geo-constructional drilling and Seismic drilling. But we can also provide a personalised solution thanks to the many options. For all specifications, please download the specifications sheet.
Options available
- SPT auto drop hammer with blow counter on control panel
- SPX40 hose pump, 114 l/min @ 9.6 bar / 30 gpm @ 140 psi
- Safety cage
- Casing or drill rod storage depends on diameter and length
- Rotatable jibboom
If you have any questions, please contact one of our experts.
The SmallRotoSonic PL (SRS-PL) is a drilling rig that excels in its ability to bundle sonic drills into a small and easily manoeuvrable size. Why use direct push, when 150Hz SmallRotoSonic delivers faster and better results and provides undisturbed samples?
- Faster and better results
- Provides undisturbed samples
- Powerful sonic force in an extraordinary small and manoeuvrable package
- Multi-purpose
- Tooling diameter between 50- 150 millimetre
SRS-PL:
- Maximum frequency: 0-150 Hz
- Sonic vibration oscillator output force: 100 kN
- Rotation Torque clockwise: 1.200 Nm @ 150 bar
- Rotation Torque counter clockwise: 1.400 Nm @ 172 bar
- Casing rack: Included
- Working lights: 2 x
- Pull up: 40 kN
- Pull down: 40 kN
- Pull up & down speed: 0-20 metre/minute
- Double hydraulic break out clamp: 40 - 250 millimetre
- Adjustable clamping force: 0-128 kN
- Break out torque: 22 kNm
