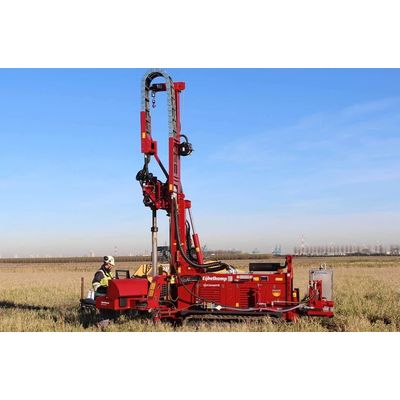

SmallRotoSonic -Â Model SRS-ML -Multi-Purpose Sonic Rig
Our SRS-ML is a small, powerful and compact Sonic drilling rig. The drilling machine combines its convenient size with efficiency and cost-effectiveness. This is why our SRS-ML really makes the difference. The SRS-ML is suitable for various purposes and can be used for Mineral sampling, Environmental exploration, Geo-technical sampling and testing, Geo-constructional drilling and Seismic drilling. Our SRS-ML delivers a true 150 Hz frequency, which makes it extremely powerful.
The drilling rig leaves a smaller footprint but still delivers perfect productivity and quality samples. The drilling machinery has an output power of 150kN/43K sonic vibration oscillator. We can also offer you customised solutions. This robust machine may be small in size but it delivers exactly what you as a customer need. Various options are available to customise this machine. For all specifications, please download the specifications sheet.
Available options

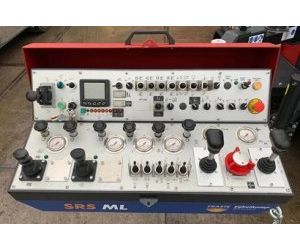

- SPT auto drop hammer with blow counter on control panel
- SPX40 hose pump 114 l/min @ 9.6 bar, 30 gpm @ psi
- Safety cage
- ManipAll 200 (magnetic rod loading arm)
- Casing or drill rod storage depends on diameter and length
- Rotatable jibboom
- Special low clearant mast upon request
If you have any questions, please contact our specialists.
The SmallRotoSonic Multi-purpose sonic rig (SRS-ML) is a small and easy to manoeuvre drilling rig with extreme sonic power. This small but powerful rig delivers faster and better results and the best undisturbed samples, thanks in part to the 150Hz RotoSonic.
- Small and manoeuvrable rig
- Accelerates drilling and sampling productivity
- Small footprint
- Tooling diameter between 50-150 millimetre
- Perfect quality samples
SRS-ML
- Maximum frequency: 0-150 Hz
- Sonic vibration oscillator output force: 150kN/34K
- Rotation Torque clockwise: 0-120 rpm 1.200 Nm @ 150 bar
- Rotation Torque counter clockwise: 1.400 Nm @ 172 bar
- Working lights: included
- Pull up: 50 kN
- Pull down: 35 kN
- Pull up and down speed: 40 metre/minute
- Double break out clamp: 40 - 240 millimetre
- Adjustable clamping force: 97 kN
- Break out torque: 20 kNm
