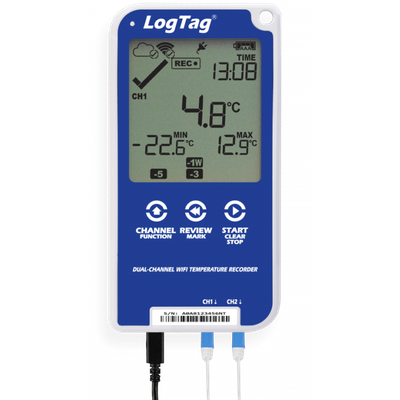

LogTag - Model UTRED30-Wifi (DC) -Multi-Trip Dual-Channel LCD WiFi Data Logger
The UTRED30-Wifi (DC) is a multi-trip, dual-channel LCD WiFi data logger designed for precise temperature monitoring in various applications. Featuring WiFi connectivity, it allows for real-time data access and remote monitoring capabilities. This device provides efficient tracking with its dual-channel functionality, making it suitable for environments requiring accurate and reliable temperature data logging, such as pharmaceuticals, healthcare, and logistics. The LCD screen displays current readings and status updates, ensuring users can readily access critical information. Compatible with cloud-based solutions, the UTRED30-Wifi (DC) streamlines compliance, alerting, and decision-making processes.- Vaccine Storage Compliance: WHO, CDC, FDA, VFC, NIH, PHAC, AAP.
- Real-time data automatically uploaded via WiFi to LogTag® Online.
- 32,000 total temperature readings, 16,000 readings per channel.
- Instant voice call, SMS, or WhatsApp alert when an excursion event is detected with LogTag® Online subscription
- Reset Min/Max temperature reading at any time.
- Vaccine Kit available.
The LogTag® UTRED30-WiFi temperature data logger automatically uploads real-time temperature data to your LogTag® Online cloud account via your existing wireless network.
Receive an instant call, SMS or WhatsApp alert from your logger when it detects an excursion so you can act immediately. Subscription required.
These include non-volatile memory for up to a total of 32,000 temperature readings, 16,000 readings per channel and a statistical memory, storing maximum and minimum reading as well as alarm duration for each of the last 30 days.
It features a large, easy-to-read display, along with many familiar attributes known from the LogTag® family of data loggers.
A non-WiFi version of this model is available.
The LogTag® UTRED30-WiFi complies with the guidelines of vaccine storage and handling from WHO, CDC, FDA, VFC, NIH, PHAC, AAP and more.
Product Model: UTRED30-WiFi.
External Sensor Measurement Range: -40°C to +99°C (-40°F to +210°F).
Operating Temperature Range: -30°C to +60°C (-22°F to +140°F).
Storage Temperature Range: -10 °C to +40 °C (32 °F to +104 °F).
Rated Temperature Resolution: Better than 0.1°C (0.2°F) for -30°C to +60°C (-22°F to +140°F).
Better than 0.2°C (0.4°F) for -40°C to -30°C (-40°F to -22°F).
Better than 0.5°C (0.9°F) for +60°C to +99°C (+140°F to +210°F).
Rated Temperature Reading Accuracy: Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F)
Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F)
Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F)
Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F)
Probe Connectivity: Up to 2
Probe Compatibility: All ST100 precision thermistor external probes can be interchangeably connected to the UTRED30-WiFi. Please refer to the page for External Probes on the LogTag North America website.
Recording Capacity: 32,000 total log memory. Provides 16,000 temperature readings per channel.
Day summary statistics memory (for display on LCD): up to 30 days of Min/Max/duration and alarm trigger statistics.
Sampling Interval: Configurable from 30 seconds to 18 hours.
Logging Start Options: Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time.
Download Time: Typically with full memory (32,130 readings) in less than 10 seconds.
Environmental: IP51 (when vertically mounted or hung).
Calibration: Factory calibrated using NIST equivalent reference equipment. Calibration certificate available on request.
Power Source: 5V via micro USB socket or, 2 x 1.5V AAA alkaline batteries,
CR2032 3V LiMnO2 (backup logging function only)
Battery Life: Device should normally be powered via USB. AAA batteries provide backup power for up to 2 months
Connection Interface: USB 2.0 / Micro USB plug.
WiFi: 802.11 b/g/n
WiFi Authentication Methods: Open, WPA2/PSK (with or without PMF), EAP-PEAP, EAP-TTLS
Bluetooth®: Bluetooth® V4.2 BR/EDR and Bluetooth LE®.
Size: 141mm(H) x 72mm(W) x 18mm(T).
Weight: 158g with AAA batteries, (134g – excluding probe and AAA batteries).
Case Material: Polycarbonate.
