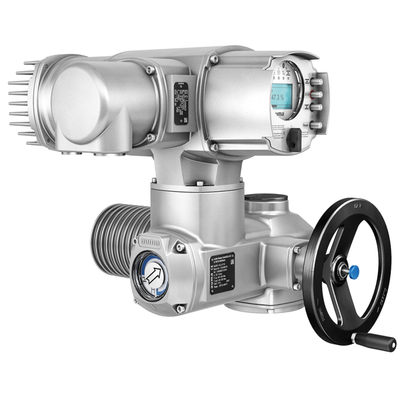

Auma - Model SARV-2 -Multi-Turn Actuator
With SARV .2 multi-turn actuators for modulating duty paired with ACV 01.2 actuator controls, the proven SA/SAR range is enhanced by variable speed models. AUMA is spearheading market technology by offering a wide speed control ratio of 1:10. SARV multi-turn actuators are rated for modulating duty (class C) S4 - 25 %. Special versions for S4 - 50 % are also available.
Most popular related searches
Torque range
- 15 Nm to 1000 Nm
- Variable speed for modulating duty
Design features
- Limit and torque sensing
- 3-phase AC motors
- Handwheel for manual operation
- Superior positioning accuracy
Service conditions
- Wide temperature range
- Highest enclosure protection
- High quality corrosion protection
Options
- Intermediate position switches
- Switches in tandem version
- Position transmitter
- Magnetic limit and torque transmitter
- Mechanical position indicator
Interfaces
- Electrical connection via AUMA plug/socket connector (terminals as an option)
- Cable entries in different versions
- Valve attachments according to DIN and ISO standards
