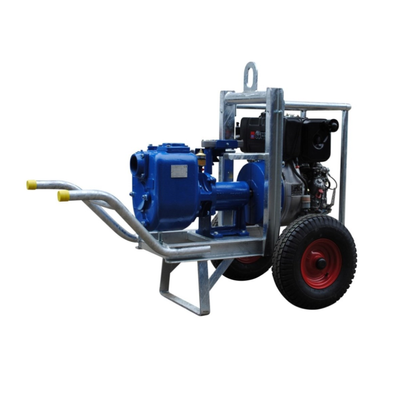

BBA Pumps - Model B85 Diesel Driven -Multi-Use 3 Inch Self-Priming Centrifugal Pump
The B85 is a 3 inch self-priming centrifugal pump suitable for pumping dirty water with solids up to 40 mm. This single-cylinder diesel driven pump on a galvanized wheelbarrow frame is used around the world in a variety of applications. A small mobile diesel pump for the construction, rental and agricultural markets. Pump flow up to 90 m³/h, Maximum total head 16 mwc.
- Discharge x Suction: 3" x 3"
- Max. flow: 90 m³/h
- Max. head: 16 mwc
- Free passage: 40 mm
- Material: cast iron (others on request)
- Engine: Hatz
- Max. speed: 1500 rpm
- Starting method: manual start
- Frame: wheelbarrow frame
- Dry weight: 325 kg
B self-priming centrifugal pump
The B range of pumps have been designed with a clear focus on reliability, efficiency and durability, ranging from 1-1/2” to 12”. Featuring an open impeller configuration in combination with a changeable wear plate, facilitating servicing and minimising costs of spares. All B series pumps are fitted with a non return valve in the suction port, eliminating the need for a foot valve in suction line and allowing quick priming.
Design features
- Basic, reliable technology
- Large solids handling capacity
- Suitable for use with hot fluids
- Wet self-priming
- Cooled shaft seal
Fields of application
- Shipping
- Industry
- Construction
- Waste water management
- Emergency pump units
- Irrigation
- Agriculture
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
BBA self priming pump
- Pump type: B85
- Max. flow: 90 m3/hour (396 US GPM)
- Max. head: 16 mwc (52 feet)
- Impeller type: Open impeller
- Solids handling: 40 mm (1.5 inch)
- Pump casing: Cast iron GG20
- Impeller: Cast iron GG20
- Wear plate: Cast iron GG20
- Pump shaft. C45
- Shaft seal: Mechanical seal
- O-ring: Viton
Engine
- Engine brand: Hatz
- Engine type: 1D81Z
- Flywheel power kW (hp): 5.5 kW (7.5 Hp)
- Max. engine speed: 1500 RPM
- Fuel consumption: 245 g/kWh
- Displacement: 0.722 l
- Number of cylinders: 1
- Balancing: 100% of free mass forces
- Cooling system: Air cooled
- Exhaust emission US: Tier 4
- Starter: Manual
Frame
- Frame type: Wheelbarrow
- Material: Galvanised
- Fuel tank: Approx. 10 L
- Lifting point: Fitted with single lifting point
- Connections: Please consult “auxiliary items”
- Tires: 2 rubber tires
- Tow bar: N/A
General
- Steel fuel tank 10 L. net (2.7 US Gallon)
- Fuel tank cap Ø 60 mm
- Mechanical fuel injection system
