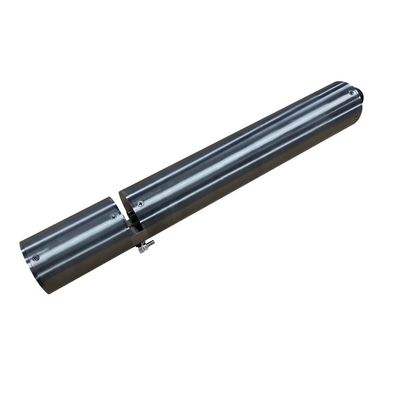

Real Tech - Model SA Series -Multi-Wave Submersible Probe
Real Tech’s robust Multi-Wave submersible probe provides affordable real-time measurement of organic matter and other compounds in water or wastewater. The Multi-Wave probe utilizes patent-pending technology to provide superior measurement performance across multiple wavelengths of light using UV LEDs. The probes rugged body is built to withstand harsh environments, with titanium or stainless steel options. Designed to meet the needs of many monitoring applications, the SA series offers multiple path length selections for the desired measurement range. Parameter(s): Customized to application – BOD, COD,TOC, DOC, UV254, UVT, TSS, colour, O3 and more.
- Affordable real-time water quality monitoring
- Multiple wavelength sensor uses patent-pending technology for superior measurement performance
- Robust submersible probe with titanium or stainless steel housing
- Operator friendly, low maintenance UV LED design
- Reagent free optical measurements
- Simple to install and operate
- Multiple parameter configuration available
Ideal for open channel applications, Real Tech’s Multi-Wave probe is a submersible instrument installed directly in-situ. The Multi-Wave probe must be connected to a Real Tech controller for operation.
EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - Probe Cleaning System
For low maintenance automatic cleaning - Mounting Kit
For secure mounting to a tank or open channel wall, or railing - Multi-Wave Probe
For real-time water quality measurement
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for lab results.
Characteristic: Technical Data
- Path Length Options: 0.5 mm, 1 mm, 2 mm, 4 mm, 10 mm
- Parameters: Customized to application. BOD, COD,TOC, DOC, UV254, UVT, TSS, colour, O3
- Range : Depends on model selected. Refer to range chart
- Units: Parameter specific (mg/L, cm-1, % or PCU)
- Sampling Time: 10 seconds
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning : Automatic compressed air cleaning with optional Probe Clean System
- Self-Diagnostic : Detection and diagnosis of internal system fault
- Alarms: Continuous detection of leaks, lamp output, humidity, temperature and electrical fault
- Humidity Control: Humidity sensor with Desiccant Pack
- Wavelengths: Multiple UV and VIS wavelengths. Application-dependent
- Light Source: UV LED
- Electrical/Comm.: From controller
- Storage Temp.: -20 to 60°C (-4 to 140°F)
- Operating Temp. : 0 to 45°C (32 to 113°F)
- Housing Material: Titanium or Stainless Steel
- Weight : 4.6 lb
- Dimensions: 15" H x 2.0" Diameter
- Warranty: 2-year limited warranty (Extended care packages available)
* Technical Specifications are subject to change without notice.
