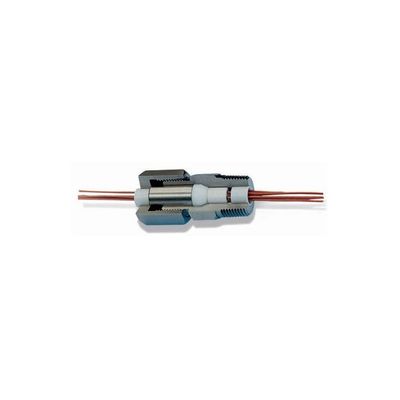

Conax - Model PL -Multi-wire Power Compression Seal Feedthrough

Transformer and motor power, conduit box feedthroughs, pressure and vacuum chamber power and instrument feedthroughs, etc.

Most popular related searches

Stainless Steel Fitting
For Gas or Liquid
Easy Installation -No “Potting”
Seals 1 to 12 Wires
Pressure*: Vacuum to 10,000 PSI (690 bar), (Refer to Pressure Rating (PSI) Guide)
Rated: 600 Volts to 55 Amps
Field Adjustable
Reusable Fitting
Wire Identification Markers Applied
Wires Readily Assembled or Replaced in Field
Available With or Without Conductors
Available With Thermocouple Material Conductors – Selected Sizes

Replacement Packing Set (RPS) consisting of sealant and two insulators is available.
Example: RPS-PL-12-3-T

Replacement Sealant (RS) consisting of sealant only is also available.
Example: RS-PL-12-3-T

Features
