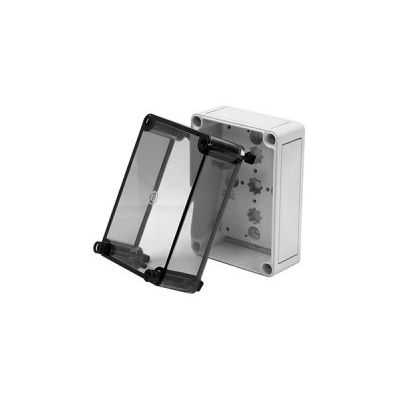

Multibox - Model CT -Transparent Cover Enclosures
The Multibox MB CT series enclosures are designed for use as electrical junction boxes or instrumentation enclosures in highly corrosive environments where visibility of interior components is essential.
Configurations
PCCT: Polycarbonate transparent cover enclosures with four non-metallic corner screws
PCCTK: Polycarbonate transparent cover enclosures with four non-metallic corner screws and metric knockouts
PSCT: Polystyrene transparent cover enclosures with four non-metallic corner screws
PSCTK: Polystyrene transparent cover enclosures with four non-metallic corner screws and metric knockouts
Features
- Enclosures are maintenance free and corrosion resistant.
- PCCT bases and covers are made from polycarbonate that can withstand continuous temperatures from -31°F to 176°F (-35°C to 80°C).
- PSCT bases are made from polystyrene and covers are made from polycarbonate that can withstand continuous temperatures from -13°F to 104°F (-25°C to 40°C).
- Cover screw holes in corners are outside of the gasket area.
- Continuous gaskets made of polyurethane foam guarantee optimal integrity.
- All enclosures can be easily modified to customer specifications.
Standards
IEC 60529 (IP66)
IEC 50102 (IK08) Polycarbonate
IEC 50102 (IK07) Polystyrene
EN 60529 (IP66)
EN 50102 (IK08) Polycarbonate
EN 50102 (IK07) Polystyrene
Approvals
UL Listed Types 4X & 12 (Polycarbonate)
NEMA 4X & 12 (Polystyrene)
