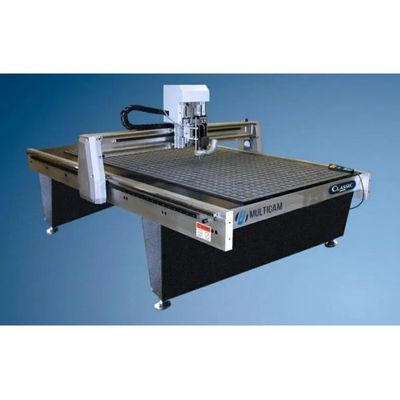

MultiCam - Model Classic Series -CNC Router
Need to make cuts that focus on value, performance, and cost-effectiveness? That’s where the Classic Series CNC router comes in. Lower horsepower (3 HP), cutting speed (600 IPM), and rapid traverse (850) means the Classic Series knocks projects requiring finer cuts out of the park. You’ll use it to work on non-porous and composite materials and wood. You may use it to make new cabinets, work with acrylic, aluminum, aerospace, or 3-D carving projects. Like other MultiCam products, it has a durable steel-frame. The frame’s steel construction also means it eliminates vibration, which helps keep your cut nice and smooth. he Classic Series CNC router is really designed for simplicity and ease-of-use. An optional vacuum table is available to help you hold down your project. Aside from that, you get exactly what you see with the V-Series.
-
Non-Porous Materials
-
Composite Materials
-
Wood & more
- Acrylic Fabrication
- 3D Carving
- Architectural Millwork
- Light Aluminum Fabrication
- EZ Control® high-speed motion controller
- Heavy, all-steel frame construction
- 25mm linear bearing profile rails
- High-speed three-axis motion controller
- Automated Tool Calibration
- EZ Suite software
- Z-Axis Travel: 6″ (152 mm)
- Cutting Speed: 600 IPM (15.2 MPM)
- Rapid Traverse: 850 IPM (21.6 MPM)
- Rack and Pinion with Dual digital motors
- Drive System Z Axis: Lead Screw
- Work Surface: Phenolic or T-Slot
