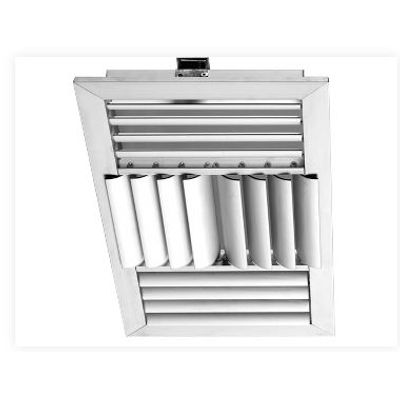

SagiCofim - Model BE -Multidirectional Diffusers With Curved Fins
FromSagiCofim spa
The BE multidirectional rectangular speakers are used for ceiling installation, particularly on inclined ones such as in attics or in rooms with complex architecture. They are equipped with adjustable curved fins to de?ect the air?ow in a horizontal to vertical direction. They are available with 1, 2, 3 or 4 delivery directions. For the BE series the fixing takes place using invisible screws and the counterframe while the BF version uses visible fixing screws.
Most popular related searches
- BE rectangular multidirectional diffusers used for ceiling installation
- Particularly suitable for sloping ceilings
- Equipped with adjustable curved fins for horizontal to vertical diffusion
- Available with 1, 2, 3 or 4 delivery directions
- Fixing with invisible screws (BE) and subframe (GR 001) or with visible screws (BF)
- Natural anodized extruded aluminum construction
- GT 007 model damper with opposing multiple fins
- BPI model supply plenum with lateral connection, with insulation, in galvanized steel
- The internal insulation is made of Class 1 polyethylene, 6 mm thick
- Airflow with adjustable direction from 1 to 4 ways
- Adjustable curved fins for horizontal to vertical diffusion
- Rectangular inlet with LxH dimensions from 200×100 mm to 600×400 mm
- Fixing with subframe with invisible screws
- Insulated plenum with lateral, upper or rear circular inlet
