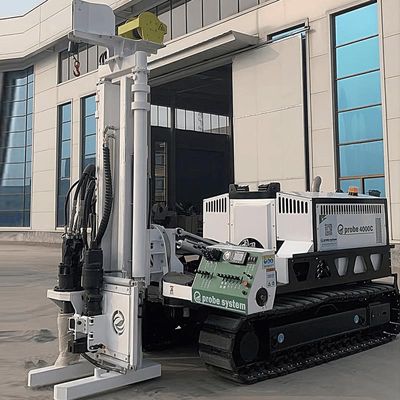

Eprobe - Model EP4000C -Multifunctional 100m Direct Push Drill Rig

• Model number EP4000C
• Weight 7800kg
• Introduction The drill rig EP4000C is an all-in-one system for soil and groundwater sampling and site remediation. It integrates a hollow spiral power head, a high-frequency impact power head.

The drill rig can be remotely controlled by remote control and can travel at high and low speeds. It adopts a walking device with a straight steel crawler and rubber blocks, which has better site adaptability and can complete environmental drilling and geological drilling tasks in various complex contaminated sites

• Direct push soil sampling
• Hollow auger well construction
• Static pressure semi-closed pipe sampling/well construction
• In-situ reagent injection
• Direct pressure soil vapor sampling
• High-speed rotary coring
• High-frequency direct push semi-closed pipe sampling/well construction
• Concrete/rock crushing, drilling, coring
• High frequency direct push semi-closed pipe advanced sampling/well construction
• Membrane interface survey (MIP)
• Direct pressure temporary rapid water extraction
• 0DEX synchronized with pipe drilling

• Customized High Frequency Impact Hammer Sandvik
• Weichai Turbo Diesel Engine Deutz
• Integrated Operating Console
• Double Hydraulic Pump Kawasaki KYB
• Two-speed Auger Power Head Rexroth
• Wireless Remote Control Scanreco
• Top Drive High-speed Rotary Power Head ET600
