MRU - Model 500GD -Multifunctional Detector and Measuring Device
Multifunctional detector and measuring device (with suction feature) = measuring results in less than 2 sec. Fast, selective and powerful with suction feature. Reliable gas leak detection and spillage test with only one system. Adjustable alarm thresholds. Optical alarm at the sensor and on the display of the device. Acoustic and vibration alarm by the device. Strong Lithium-Ion battery, chargeable via Mini-USB socket.
Most popular related searches
leak detection
gas leak detection system
gas leak detection
gas leak
leak detection alarm
concentration sensor
carbon monoxide sensor
ambient air
mercaptan sensor
CH4 sensor
- Fast measurement results due to integrated suction feature (<= 2 seconds)
- Search mode for quick leak detection
- Reliable zeroing, even with contaminated ambient air
- Display in ppm for precise location of gas leaks and determination of the gas concentration
- Sensor change during operation possible, automatic recognition by the device
- Adjustable alarm thresholds (only leak detection)
- Optical alarm on the display of the device (only leak detection)
- Acoustic and vibration alarm by the device (only leak detection)
- Clear graphic display (TFT)
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Display of measurement results also as QR code (forwarding measuring results via e-mail)

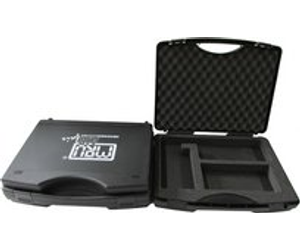

Plastic case for small units
Measuring range
- CH4: (HC sensor) 0 ... 22.000 pm
- H2O: (Sensor spillage test) 0 … 100 %
- Relative humidity: 0 ... 100% RH
- Absolute pressure: 300 ... 1.100 hPa
- Surface temperature - contactless (IR): -70 ... 380° C, field of view 35°
- HC (C3H8): 0 ... 8.500ppm
- H2: 0 ... 20.000ppm
- Refrigerant: CFC, HCFC, PFC, HFC, HFO
- CO: (CO-Sensor) 0 ... 1.000 ppm
Calculated values
- Dew point: calculated from humidity and temperature
Dimensions and other data
- Battery capacity: approx. 20 hours
- Weight: approx. 230 g (without sensor)
- Dimensions: 135 x 50 x 25 mm (LxBxT), Sensor neck: 250 mm
