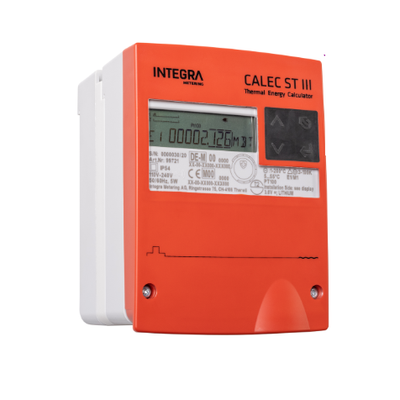

Integra - Model Calec ST II Advanced -Multifunctional Heat and Cold Calculator

Multifunctional heat and cold calculator for applications in local & district heating, as well as in building technology.

Most popular related searches

High-End Multifonctional Calculator
Precise energy measurement of all thermal applications in district heating or building technology
Enables smart metering: provides accurate meter measurements remotely
Bidirectional energy measurement: cooling and heating measurements in the same device
Plug-in calculator module
Multiple interfaces for building management systems: M-Bus, LON, Modbus, N2Open, BACnet MS/TP, KNX
Multiple interfaces for IoT Solution or radio readout: WM-Bus (OMS) or LoRaWAN
Full modularly expandable factory or on-site
Fluide substance data for water-glycol mixtures (pre-defined or on-demand)
Integrated power supply for flowmeters
Metrological approval according to 2014/32/EU (MID) and PTB K7.2 (cold, hot/cold combined)

Compatible with all standard flow meters which use a pulse output
Plug-in computer module with LCD display
Power supply 110 / 240 VAC – 12W
For Pt100, Pt500, Pt1000 temperature sensors, 2- or 4-wire, Max. cable length 100 m (4-wire)
Medium temperature: 0°C to 200°C (-40°C to 180°C special heat transfer fluids)
Temperature difference 0K to 190K (approval 3K to 190K, 1K to 190K according to EN1434-4:2014)
20-bit resolution, typical +/- 0.005 K
Choice of display units
Data logger up to 500 records
Calculation cycle 1 s
24V or 3.6V power supply for flowmeter
2 Pulses inputs / Multiple Digital output possible
Up to 12 Analog outputs
