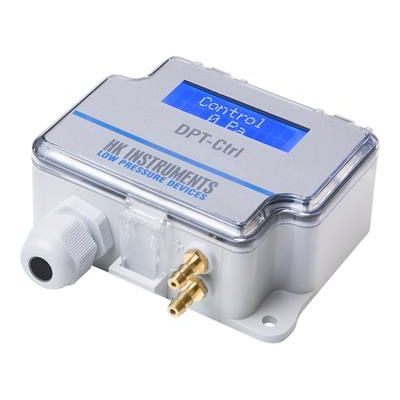

HK Instruments - Model DPT-Ctrl -Multifunctional PID Controller
FromProdual UK Ltd.
DPT-Ctrl is a multifunctional PID controller with differential pressure or air flow transmitter. DPT-Ctrl enables to control constant pressure or flow of fans, VAV systems or dampers. Its two lined display shows the direction of the control output and the measurement value at the same time. It is possible to select either current or voltage for both the control output and the differential pressure or flow output. The optional autozero function eliminates the need for periodic manual zero point calibration.
Most popular related searches
flow transmitter
flow control
pressure flow controller
differential pressure transmitter
damper
pressure transmitter
- Accuracy (from applied pressure): (model 2500)Pressure < 125 Pa = 1 % + ±2 Pa, Pressure > 125 Pa = 1 % + ±1 Pa
- Accuracy (from applied pressure): (model 7000)Pressure < 125 Pa = 1.5 % + ±2 Pa, Pressure > 125 Pa = 1.5 % + ±1 Pa
- Measuring units:Pressure: Pa, kPa, mbar, inchWC, mmWC, psi, Flow: m3/s, m3/hr, cfm, l/s, m/s, ft/min
- Control signal:0…10 V or 4…20 mA (selectable by jumper)
- Output signal for pressure or air flow (selectable via menu):0…10 VDC, Load R minimum 1 kΩ or 4…20 mA, maximum load 500 Ω (selectable by jumper)
- PID-parameters:Adjustable via menu
- Zero point calibration:Automatic with autozero element (-AZ) or by pushbutton
- Supply voltage:24 VDC ±10 % / 24 VAC ±10 %
- Power consumption:< 1.0 W
- Operating temperature:-10…+50 °C (with autozero calibration -5...+50 °C)
- Protection standard:IP54
