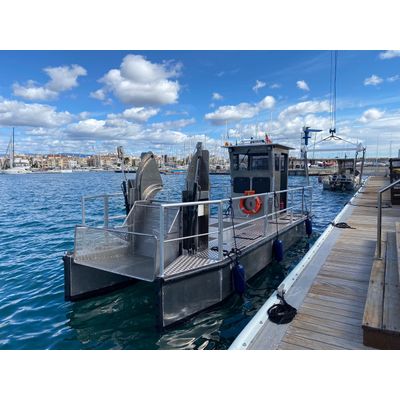

Beach-Trotters - Model Captor 7.5p -Multihull Catamaran-Type Vessel
The Captor is a multihull catamaran-type vessel whose main function is to collect and store sargassum and other floating debris. Their main function is to collect and store sargassum and other floating debris, andthey are multi-purpose, allowing them to assist and carry out any port service and coastal surveillance work.
- Collection of sargassum and other seaweed from the sea and beach shore.
- Lifting of small and medium-sized floating debris.
- Collection of floating debris of tar and high-density oil.
- Maintenance of the inland waters of commercial ports and marinas in a perfect state of cleanliness.
- Cleaning of the bathing area.
- Prevention, surveillance and action in the event of invasion of the shore by jellyfish.
- Collaboration in the rescue of people in the coastal area.
The process of collecting floating waste and algae is carried out by means of a retro-type shovel at the bow of the vessel. This shovel maintains a vertical path without exceeding the bow to improve the approach of this in marshes and places of difficult access.For the storage of the collected waste, it is unloaded into a container or big-bag, located on deck. These are then collected on land.These vessels also have a 500-litre tank on each side for the collection of sewage and grey water.
We study each project to adjust the design according to the detected needs, we prepare in detail the characteristics that the boat will have, we make the 3D modelling and the CAD plans necessary for the construction of the boat.
- Length: 7,50m
- Beam: 2,50m
- Depth: 1,00m
- Approx. freeboard: 1,00m
- Working system: Front shovel
- Type of work: Forward motion
- Max. speed (without picker): 15 knots
- Waste collection speed: 3 knots
- Crew: 4 crew members
- Hydraulic power pack: 100 A 12 V electric motor
- Propulsion: Petrol or LPG
- Solid deck load (up to): 2000 kg
