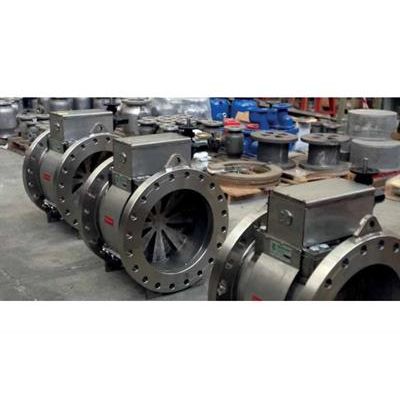

Multijet Rotative Valves
The simplicity of the design allows this valve to work under heavy flow condition for a long time. It is composed by one multi-hole plate assembled between two propeller-shaped plates, one fixed and the other rotating on the common axis.
Product Details
The valve control the flow operating in the full range between two end positions:
- open when the blades of the two propellers are perfectly aligned
- closed when the blades of the movable propeller overlap the empty room of the fixed propeller.
The multi-hole plate provides a downstream flow in evenly distributed jets.
Applications
- water distribution systems
- supply of reclaimed water for agricultural use and recharge of basins
- headwork of water treatment plants
- flow relief for pump, turbine by-pass and other hydroelectric utility applications
- water intake at the bottom of dams and discharge control.
Technical Data
- Size DN 100 <> 2000
- DN 4“ < > 80“
- Pressure range PN 10 < > 64
- ASME/ANSI 150 < >300
- Actuation Manual, electric or hydraulic
