MultiLane - Model ML4015E -Oscilloscope
FromMultiLane

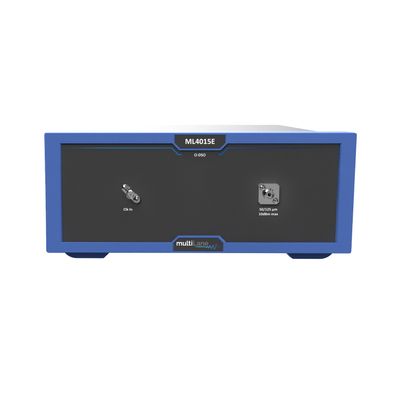

The ML4015E is a combination optical and electrical sampling oscilloscope, which can be configured with an optical bandwidth of either 25 or 40 GHz at wavelengths ranging from 1260 to 1650 nm single mode or 700 to 870 nm multimode, or with a 32 GHz differential electrical sampler. The ML4015E also comes equipped with MultiLane’s latest Cygnus GUI, streamlining setup and configuration without compromising performance. The Cygnus GUI is the culmination of direct feedback between MultiLane and our partners and incorporates our most oft-requested features including saving multiple user setups.
Most popular related searches
The ML4015E family of optical DSOs boasts an extensive set of features and functions that are unique in the industry. These include:
- A noise floor of 5 μW at an analog bandwidth of 25 GHz, and 6-7 μW at 40 GHz bandwidth.
- Sensitivity level of -11 dBm for a 25.78 Gbps NRZ signal.
- Up to 50 - 70 MHz sampling rate.
- Less than 10 seconds TDECQ on an SSPRQ pattern.
- FPGA-based architecture enabling TDECQ measurements via capture of SSPRQ and PRBS16 patterns.
- An extensive library of built-in DSP filters such as Bessel-Thomson, CTLE, DFE, FFE, deembedding, and component emulation, all available free of charge in the standard GUI.
- Comprehensive eye mask library.
- Individual impulse response calibration performed at factory.
- Compact instrument footprint with a ruggedized enclosure and handle.
- Comprehensive set of APIs and associated sample scripts to accelerate automation development under Linux and Windows, supporting Python, LabView, Matlab, and C#.
