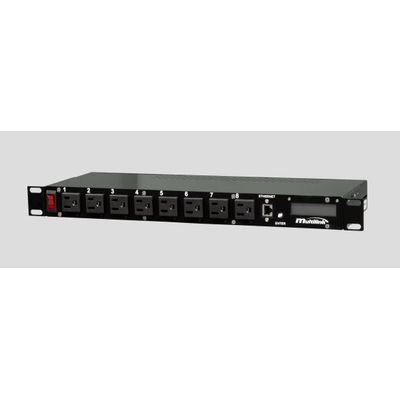

Multilink - Model 018-041-11 -Smart Tracker
The Smart Tracker is an IP-ready, GPS-enabled device that provides the system owning and/or managing agency with remote access control of (8) NEMA Rated 5-15R outlets, (8) 10A output relays, (8) digital inputs, (2) analog DC voltage inputs (for battery voltage monitoring), plus temperature and humidity sensors – all in one unit!
Embedded in each Smart Tracker is a web page that provides a summary of system details and operating states. The web page allows the user to configure all outlets, relays, inputs, and other system parameters. This control is available anywhere with access to a standard web browser – saving time and money!
While it is ideal in the field, the Smart Tracker has also proven valuable in other settings such as test laboratories, traffic control centers, server rooms, equipment hubs, and remote locations.
With use in a variety of industries, Multilink's Smart Tracker is a Remote Power Manager designed to provide 8 resettable outlets for any piece of equipment attached to it. Its internet connectivity allows it provide up-to-date operating parameters and remote access, eliminating the need for technician assistance. Through many of its features and benefits, the Smart Tracker is a comprehensive smart outlet strip that allows users to take control of their industrial equipment. It is the final solution to remote equipment deployment in your industry.
General Specifications
- System Clock : NTP/RTC/Manual Update
- Outlet Type : NEMA 5-15R, 15A/125 VAC, 60Hz
- Embedded Webpage : Password Protected User Interface
- User Input : Pushbutton for Specific Actions
- Event Log : Stores Thousands of Events
- Automation : Scheduled Events and Actions
- LEDs : Indicators for Active Outlets, Relays, and Digital Inputs
- Remote Updates : Firmware and Unit Configuration
- No. Outlets : 8 Individually Controlled Outlets
- LCD : Dual Line 2x20 Backlit
Mechanical Specifications
- Dimensions : 1.7”H x 7.0”D x 19”W (43mm x 482mm x 178mm)
- Weight : 5 Lbs.(2.26 Kg)
- Color : Black/Blue
- Relay and Input Connections : Screw Terminal Plugs for 12-22AWG Wire
- Mounting : 1RU Rack Mounting w/ Adjustable Rack Mount Brackets or Shelf Mount
Digital Input Specifications
- Digital Input Voltage : 5VDC, 10mA Max., Opto-isolated Inputs
- Humidity Sensor : Embedded
- Analog Voltage (DC) Input : 2 Independent DC Measurement Inputs
- Analog Input Voltage (DC) : 0-60VDC
- No. Digital Inputs : 8 Individual Inputs (2 Contacts per Input)
- Temperature Sensor : Embedded
Output Relay Specifications
- Relay Switching Voltage : 250VAC, 125VDC MAX
- Relay Current Capacity : 10 Amps, Each
- No. Output Relays : 8 Individual Output Relays
AC Input Specifications
- Frequency : 60Hz ±3Hz
- Circuit Breaker Rating : 15A
- Current Capacity : 15A
- Voltage Range : 85-154VAC; 120VAC Nominal
- Power Cord : Pluggable 5-15P, C13 15A/125VAC
Environmental Specifications
- Operating Humidity : 5-95% Non-condensing
- Storage Temperature : -45°C to 85°C (-49°F to 185°F)
- Operating Temperature : -37°C to +74°C (-34°F to 165°F)
Communication Specifications
- Network Protocols : NTCIP/TCP/IP/HTTP/SNMP/SNTP/UDP
- IP Addressing : DCHP and Static IP Addressing
- Notification Type : SNMP Traps/Email Notification
- Network Interface : 10/100/1000 BASE-T Ethernet Port, RJ45 Connection, Auto MDI-x
Safety Standard Specifications
- Standards : NEMA TS2-2016 v03.07
